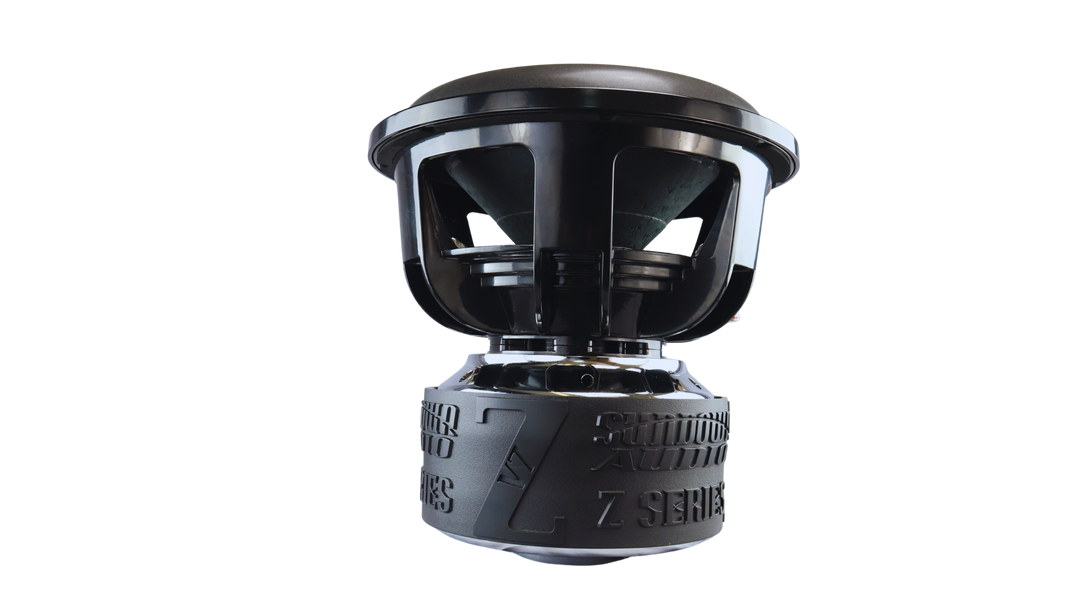

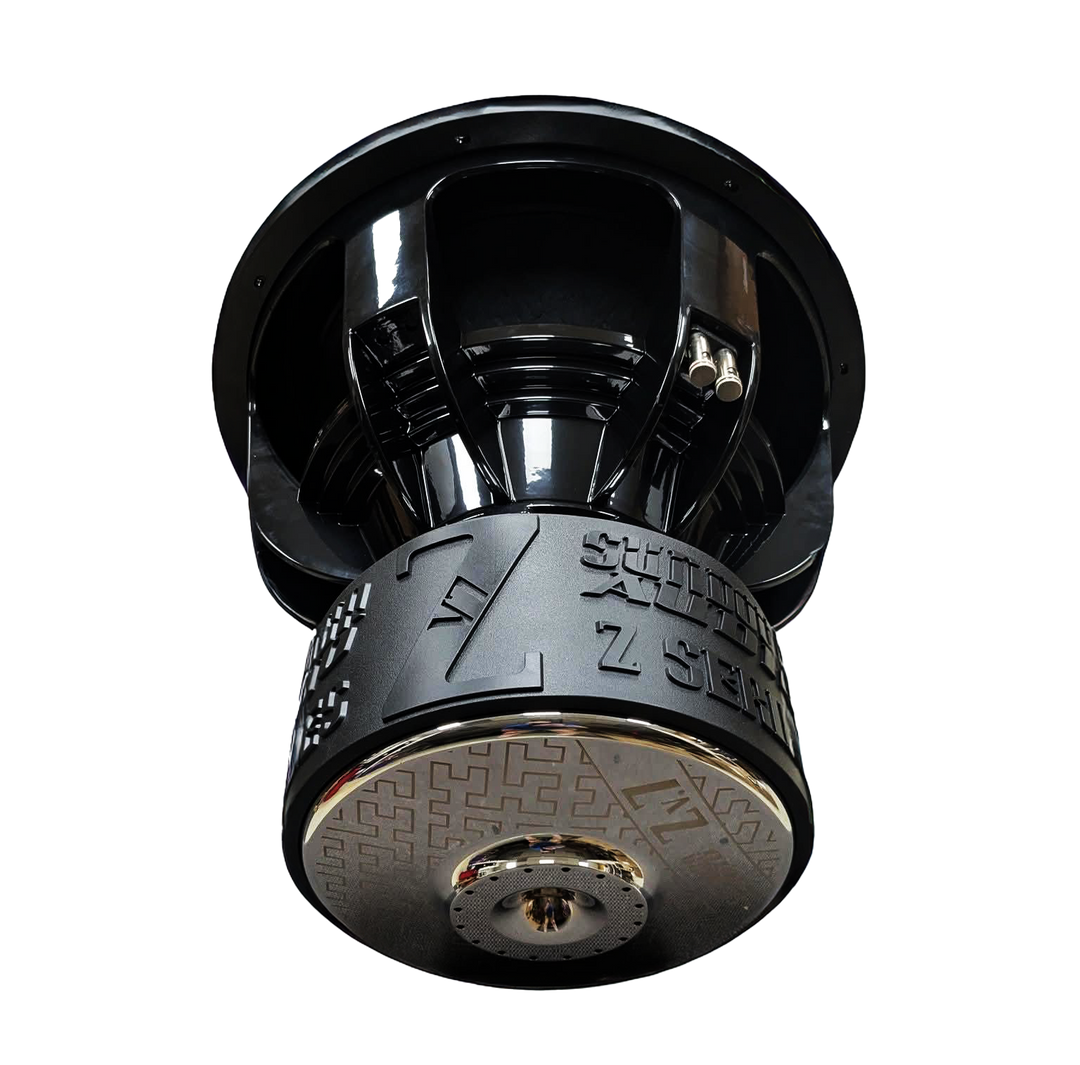

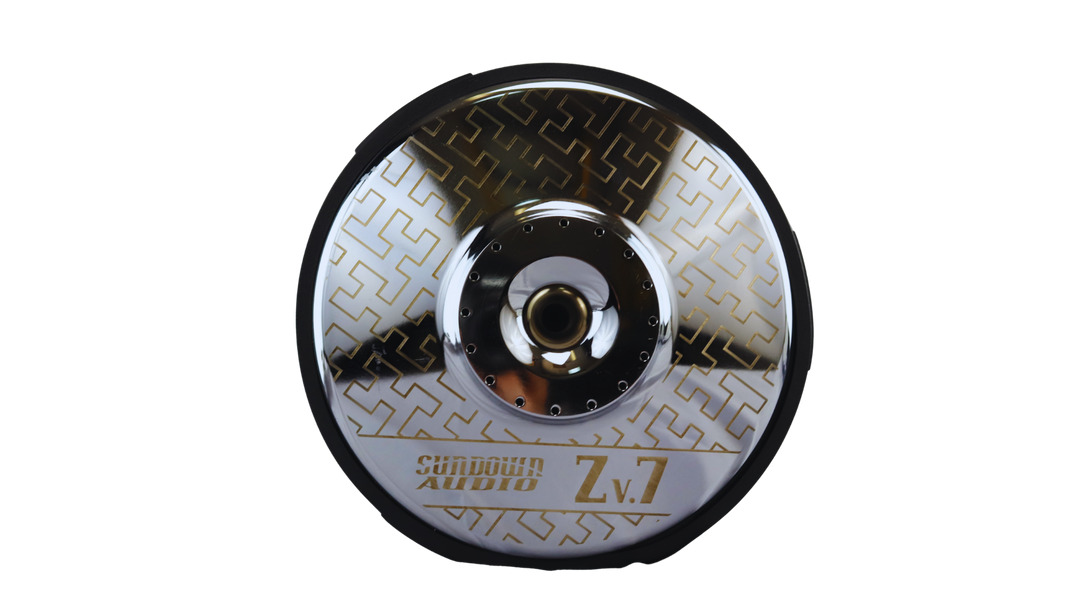

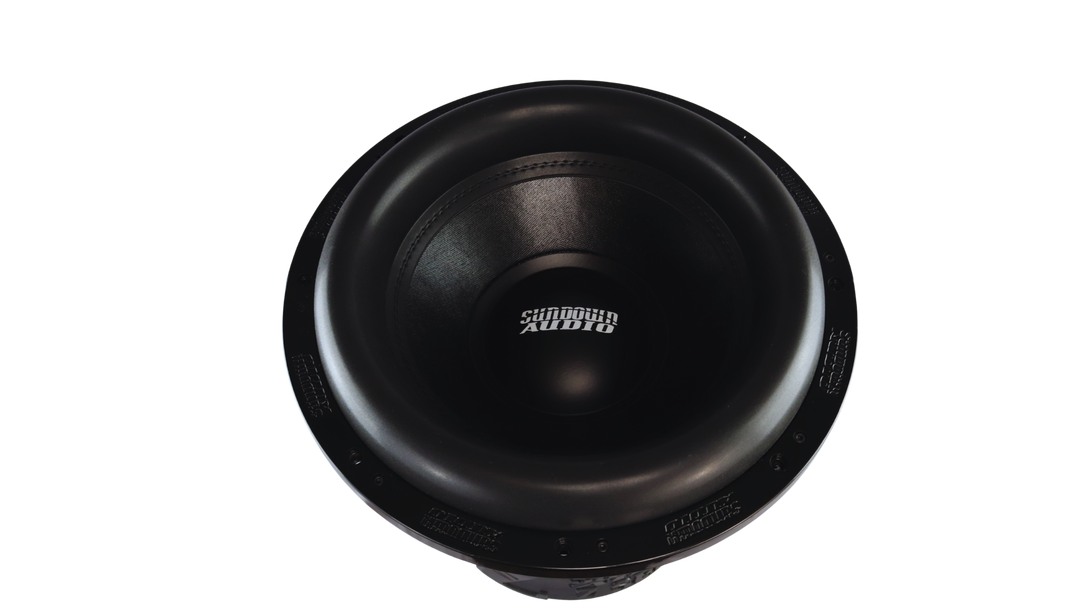

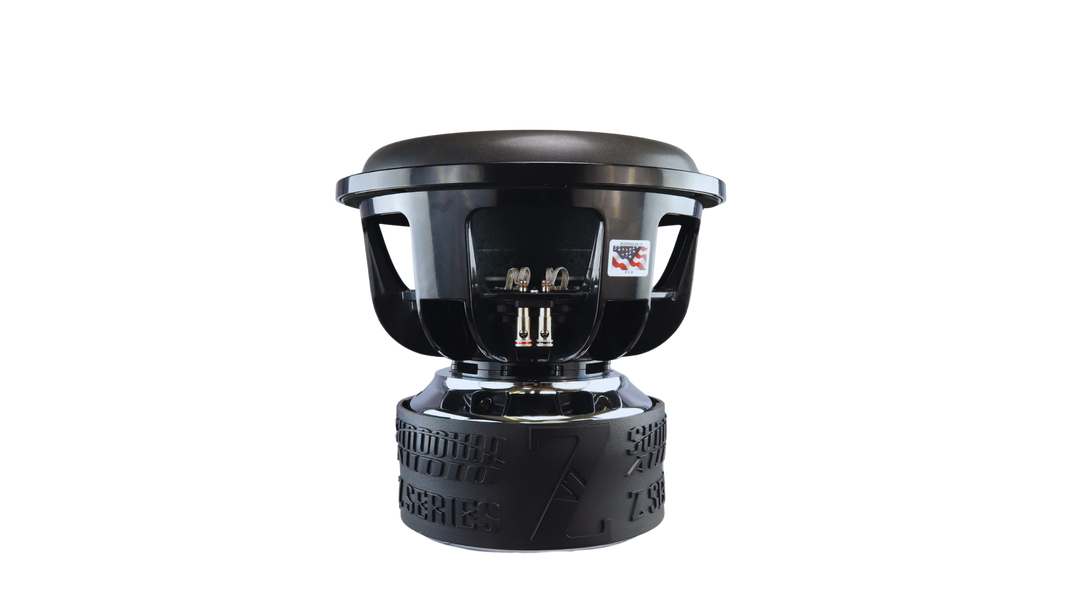

Sundown Audio Zv7 15" D2 Subwoofer

Sundown Audio  ZV7 15" Subwoofer D2





POWER RATINGS

RMS Watts 3500

Peak Watts 7000







T/S SPECS







Re-Ohms 3.84



FS-Hz 30.399



Vas-L 35.564



Qes 0.364



Qms 5.607



Qts 0.342



Le-mH 3.716



BL-NA 34.26



Mms-Grams 582.893



Cms-uM/N 47.022



Sensitivity-dB @ 1w/1m 89.316



Xmax 42mm







SUBWOOFER MEASUREMENTS







Displacement 0.29 cu ft



Depth 13.94"



Cutout Diameter 13.93"



Motor Diameter 10.8"







PORTED ENCLOSURE







4.0 cu ft



Recommended Port Area 60 sq in



Recommended Port Tuning 32hz







4TH ORDER BANDPASS ENCLOSURE







Sealed Side 2.0 cu ft



Ported Side 6.0 cu ft



Port Area 120 sq in



Port Length 8"
