Tacoma Full Set Plug & Play Speakers / Tweeters years 2005 up to 2023





Tacoma Full Set Plug & Play Speakers / Tweeters fits years 2005 up to 2023 with non JBL system.

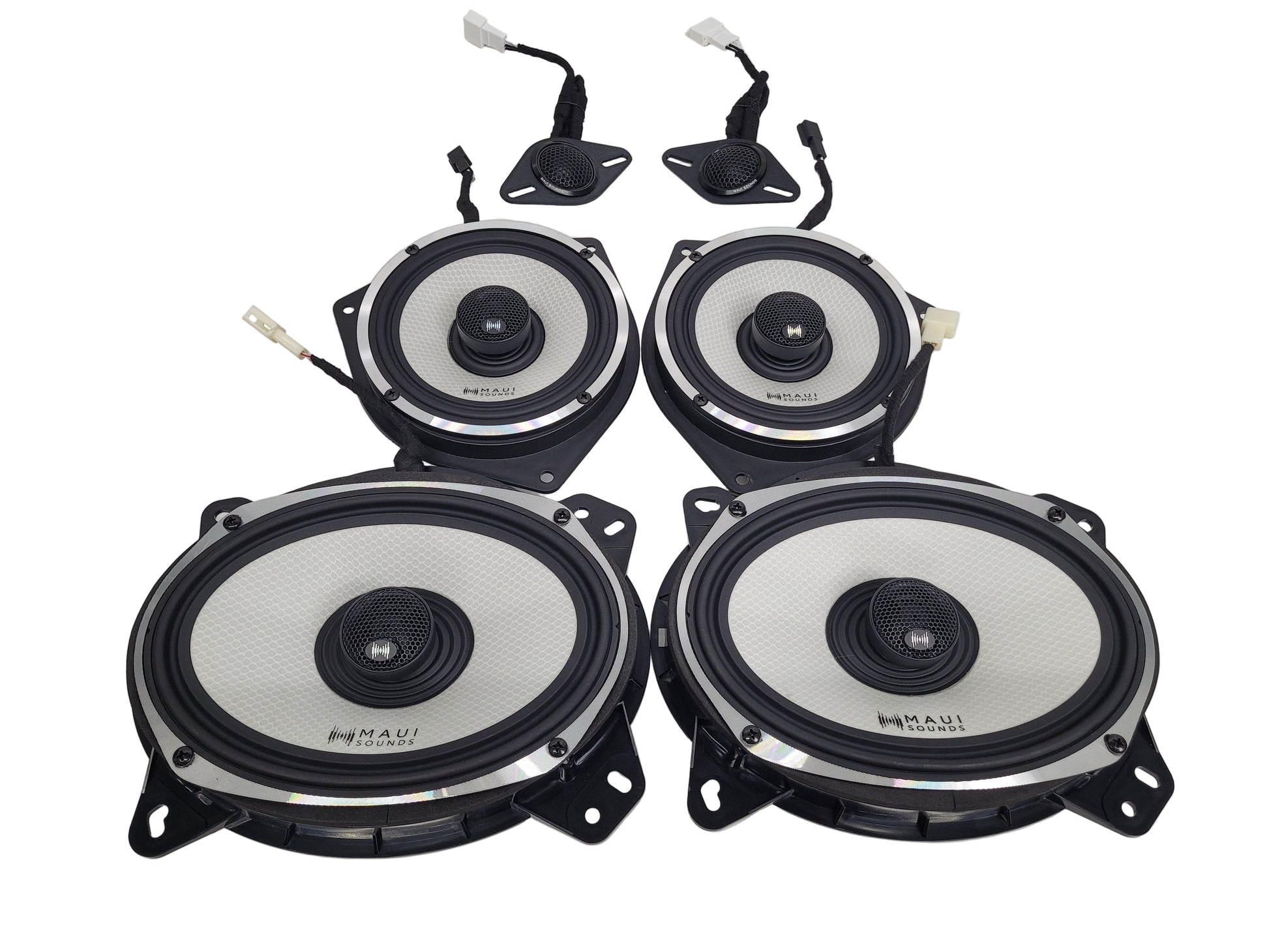

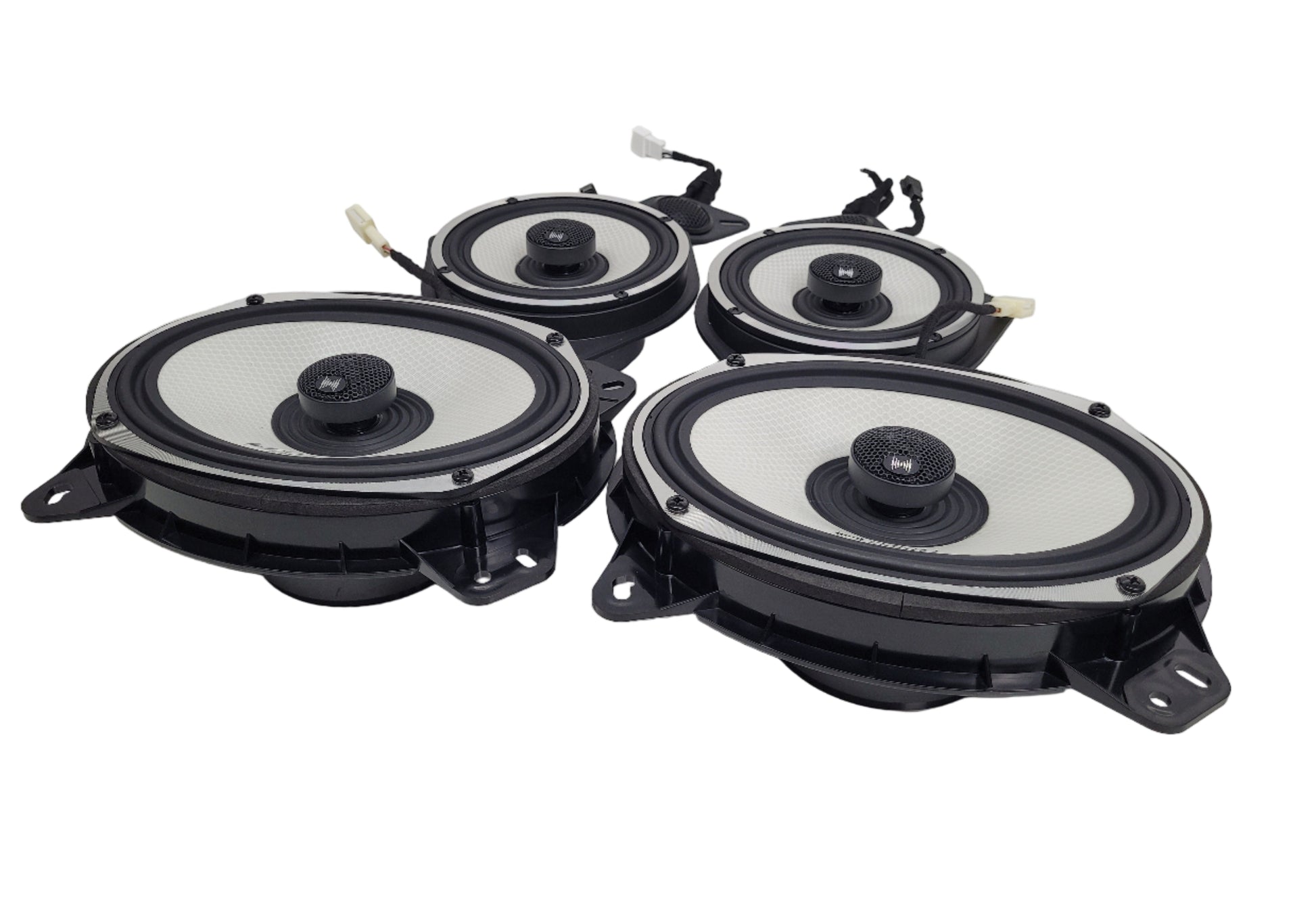

Kit includes

(2) Maui Sounds CX20069 6x9" speakers

(2) Tacoma 6x9" speaker brackets (front)

(2) Tacoma speaker wiring harnesses (front)

(2) Maui Sounds CX20065 6.5" speakers

(2) Tacoma 6.5" speaker brackets (rear)

(2) Tacoma speaker wiring harnesses (rear)

(2) Maui Sounds SD20012 2" silk dome tweeters

(2) Tacoma tweeter brackets

(2) Tacoma tweeter wiring harnesses



 FEATURES



Plug & Play harness no cutting wires required.



Tacoma specific mounting brackets, no drilling or cutting required.



Fiber glass composite / cotton cloth cone for a smooth and natural response with a sleek look.



Silk tweeter cone for smooth and crisp high frequencies without the harshness compared to an aluminum or plastic tweeter.



Double S roll surround to achieve more Xmax resulting in stronger midbass.



Rubber voice coil cover to protect the voice coil against dirt, debris, and water damage ensuring longevity even in harsh conditions.

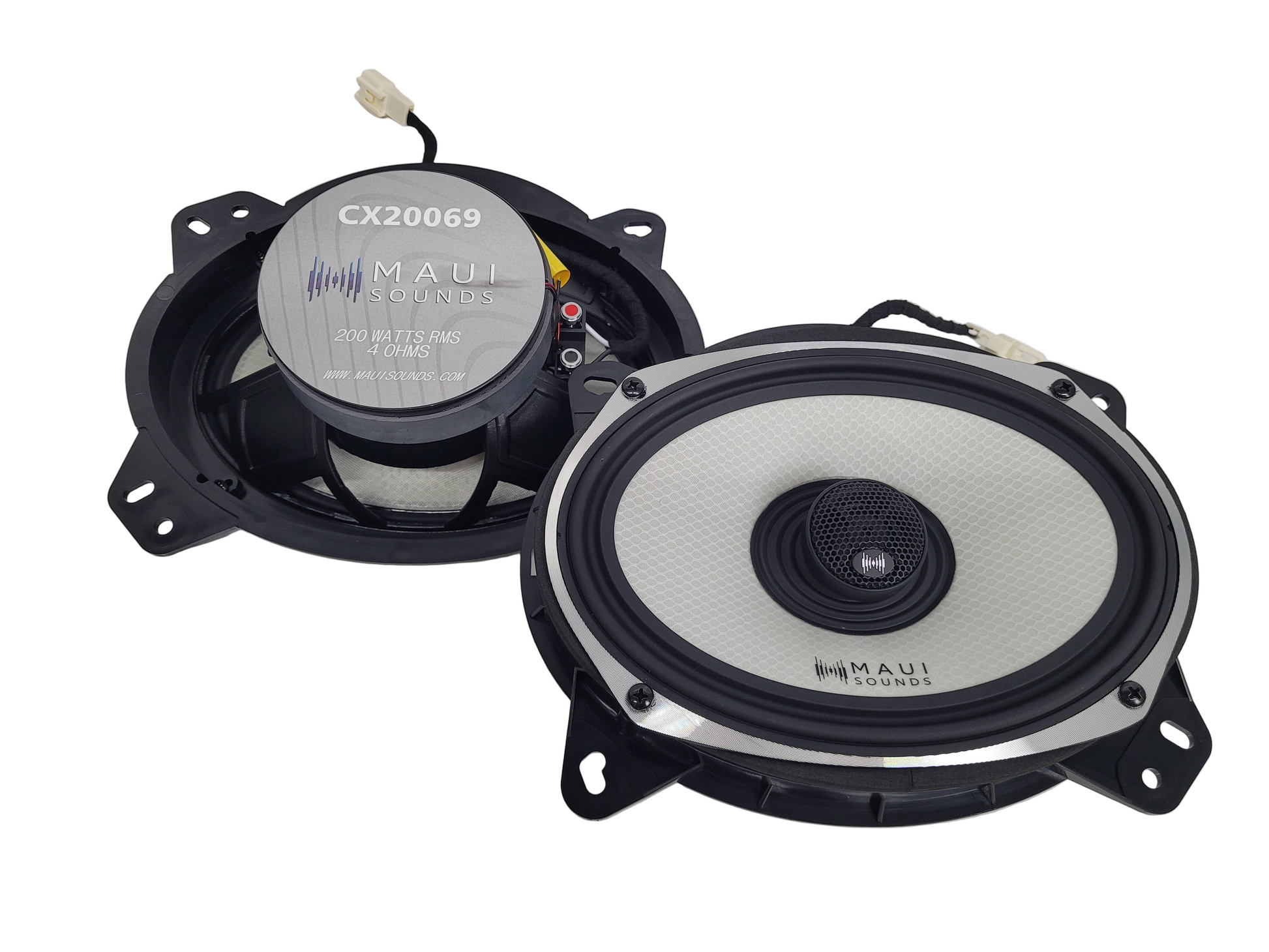

 CX20069 6x9" SPEAKERS

 GENERAL SPECIFICATIONS



Power rating •

400 Watts RMS (Pair)

200 Watts RMS (Each)

 Frequency Response • 60Hz-20Khz

 Nominal Impedance • 4 ohms

 Tweeter Cone Material • Silk

 Magnet type • ferrite

 Basket Material • Die-cast Aluminum

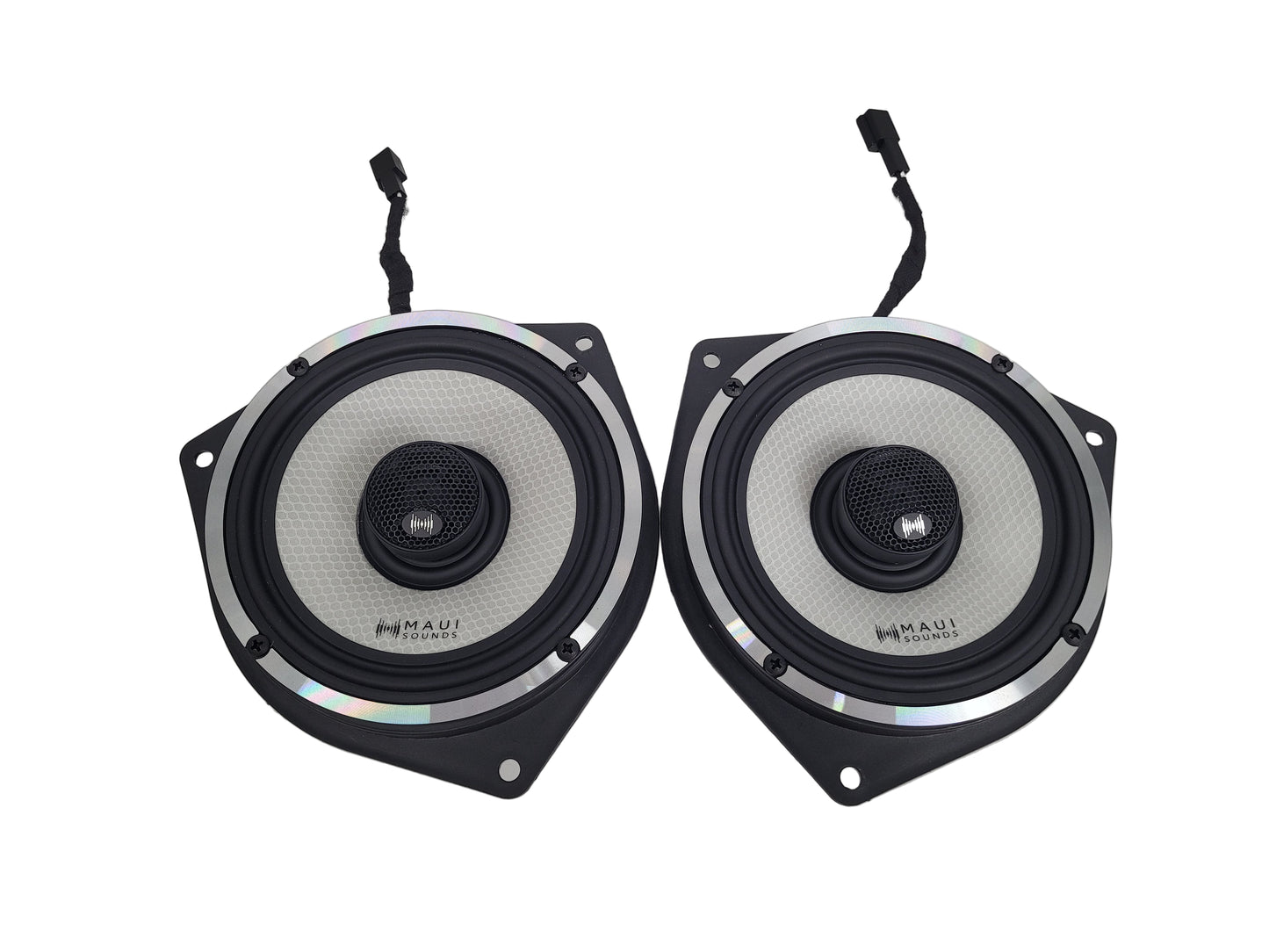

CX20065 6.5" SPEAKERS

GENERAL SPECIFICATIONS



 Power rating •

 400 Watts RMS (Pair)

 200 Watts RMS (Each)

 Frequency Response • 64Hz-20Khz

 Nominal Impedance • 4 ohms

 Speaker Cone Material • Fiber Glass /Cotton Cloth

 Tweeter Cone Material • Silk

 Magnet type • Ferrite

 Basket Material • Die-cast Aluminum

 Surround Material • Rubber



SD20012 2" TWEETERS

GENERAL SPECIFICATIONS



Power rating •

400 Watts RMS (Pair)

200 Watts RMS (Each)

Frequency Response • 2000Hz-20Khz

Nominal Impedance • 4 ohms

Tweeter Cone Material • Silk

Magnet type • Ferrite

Frame Material • Aluminum

Capacitors included

Hexagon aluminum grills

Aluminum mounting ring
