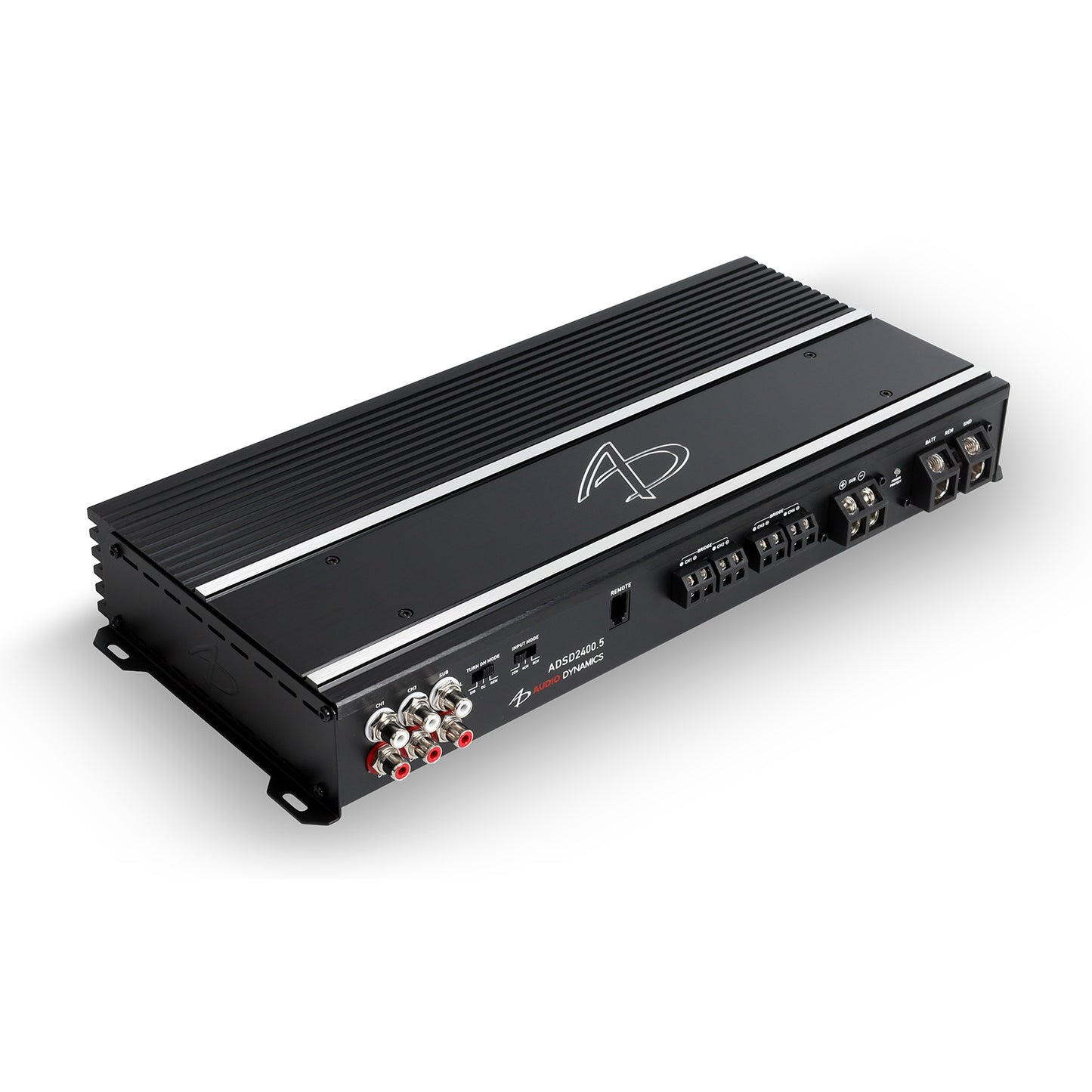

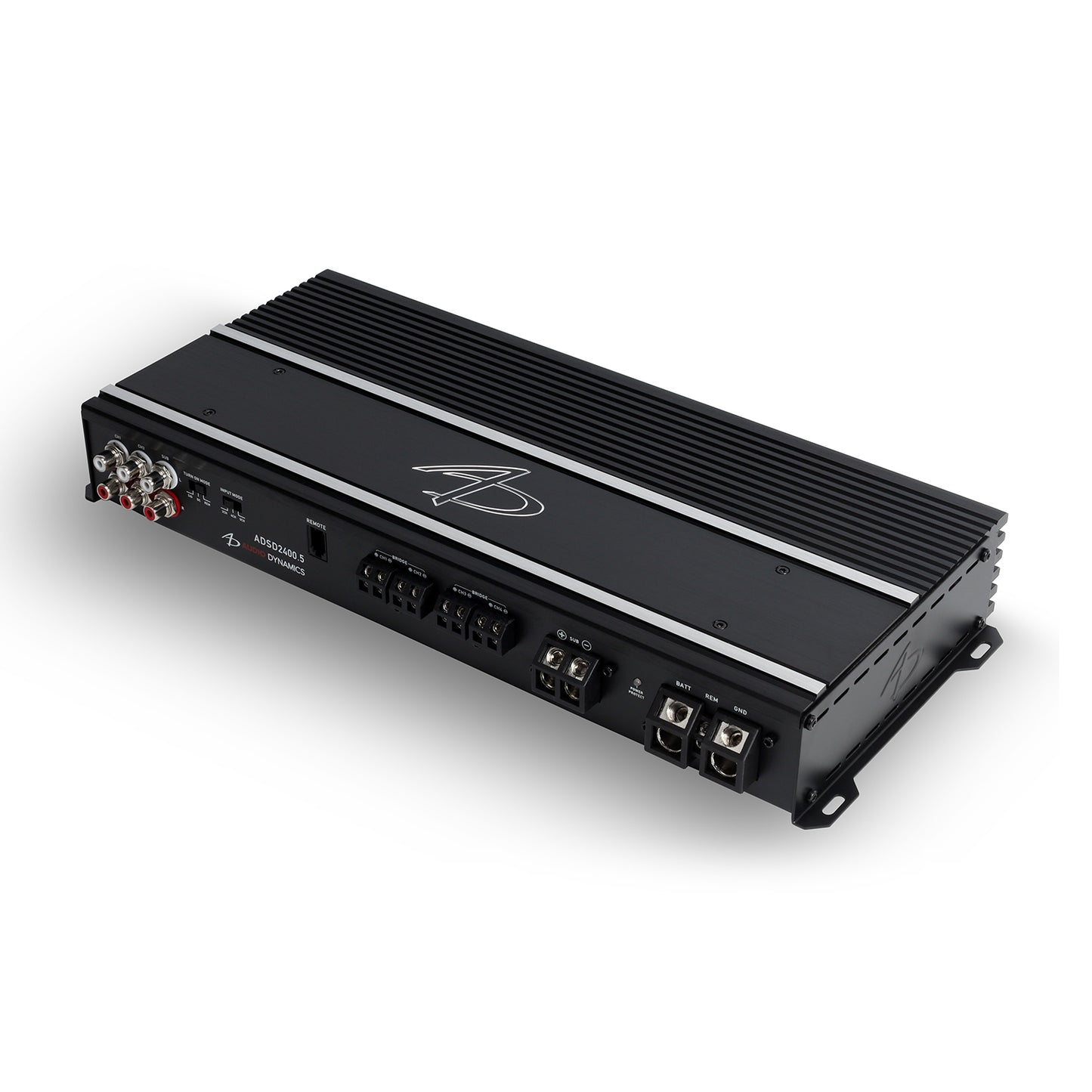

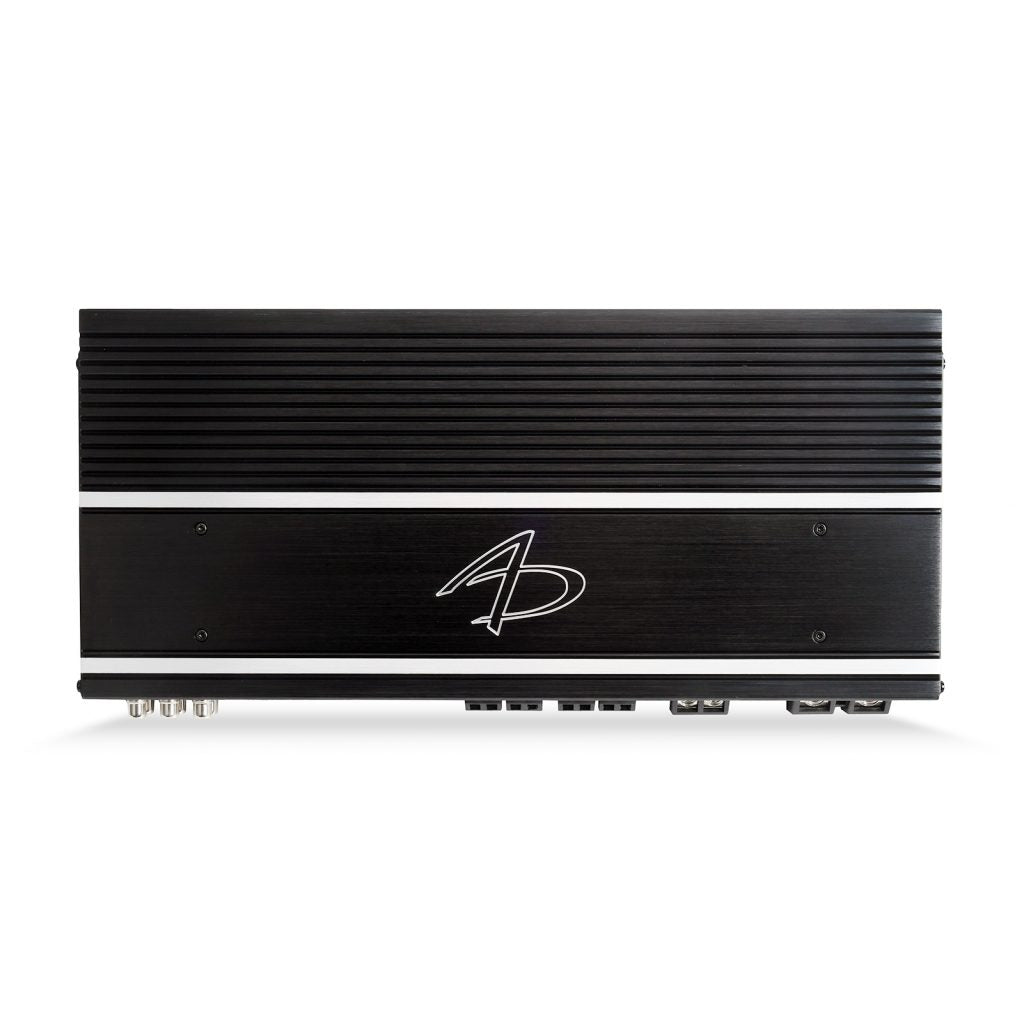

Audio Dynamics 2400.5

Audio Dynamics ADSD2400.5

5 Channel Amplifier

SPECS

Continuous Power 150W x 4 + 600 x 1 @ 4 ohms

 14.4V Supply Voltage 230W x 4 + 1000 x 1 @ 2 ohms

 Bridged 460W x 2 @ 4 ohms + 1500 x 1 @ 1 ohm

 Frequency Response 10Hz – 27KHz

 Input Sensitivity 200mV – 6V (low level)

500mV – 10V (high level into RCA connectors)

 Recommended Fuse Ratings 100A @ 4 ohms / 160A @ 2 ohms / 200A w/ch5 @ 1 ohm

 Filter Modes High Pass – Low Pass – Band Pass

 High Pass Filter Ch 1+2: 20Hz – 5KHz

 @ 12dB/Oct Slope Linkwitz-Riley Ch 3+4: 20Hz – 5KHz

 @ 24dB/Oct Slope Linkwitz-Riley Ch 5: 10Hz – 50Hz

 Low Pass Filter Ch 1+2: 50Hz – 5KHz

 @ 12dB/Oct Slope Linkwitz-Riley Ch 3+4: 50Hz – 5KHz

@ 24dB/Oct Slope Linkwitz-Riley Ch5: 50Hz – 500Hz

 Detented Filter Potentiometers 41 Click-in-Place Frequencies

 Height 2.2 in / 56 mm

 Width 15.9 in / 404 mm (includes mounting feet)

 Depth 7.33 in / 186.3 mm (includes terminals)

 Net Weight lb / kg

FEATURES

Full Range Class D

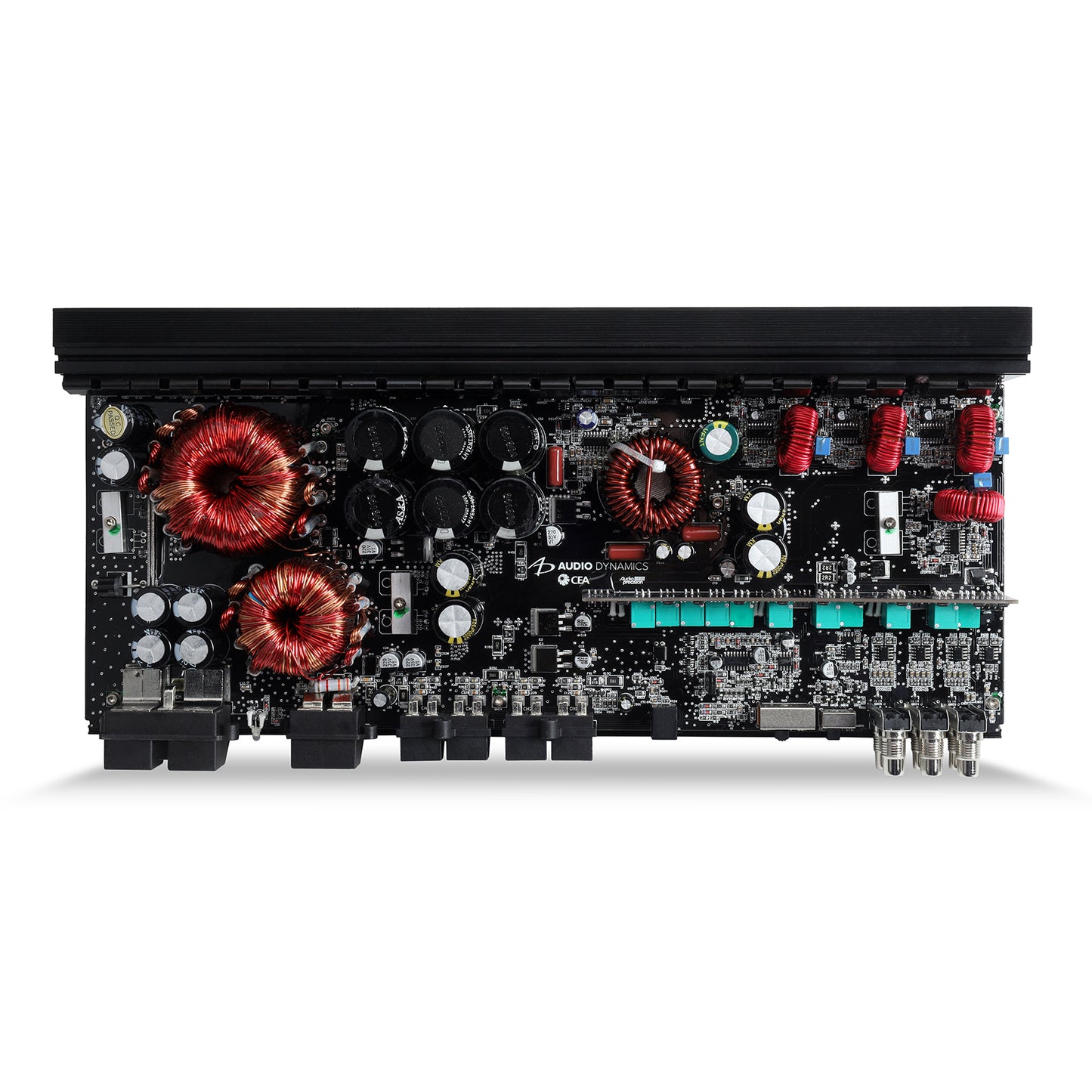

Infineon Chipset Drive Technology

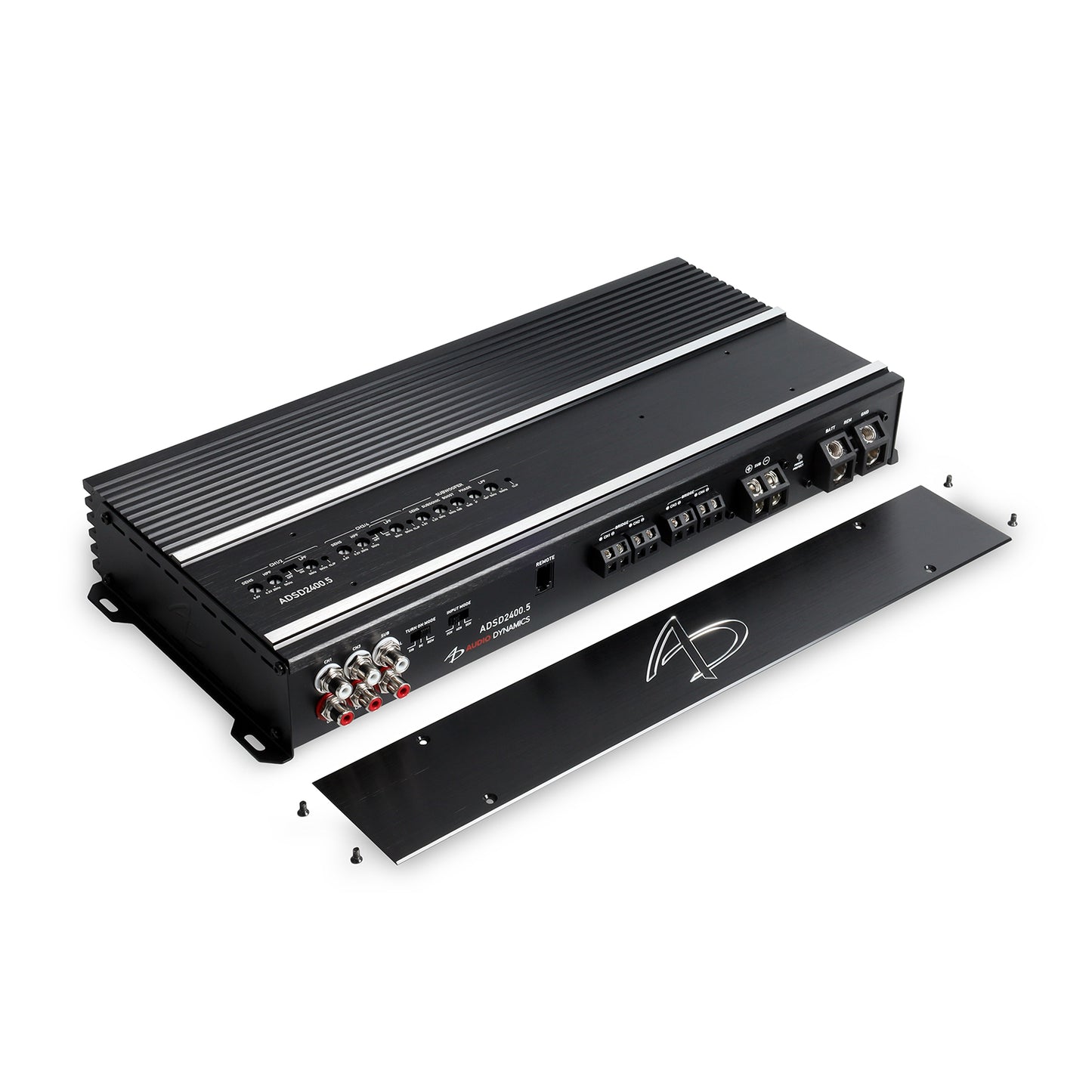

Controls Under Reversible Top Plate

Click-in-Place Crossover Controls

Band Pass Capable

Clipping Indicators by Each Level Control

2ch/4ch/ 5ch Input Selector

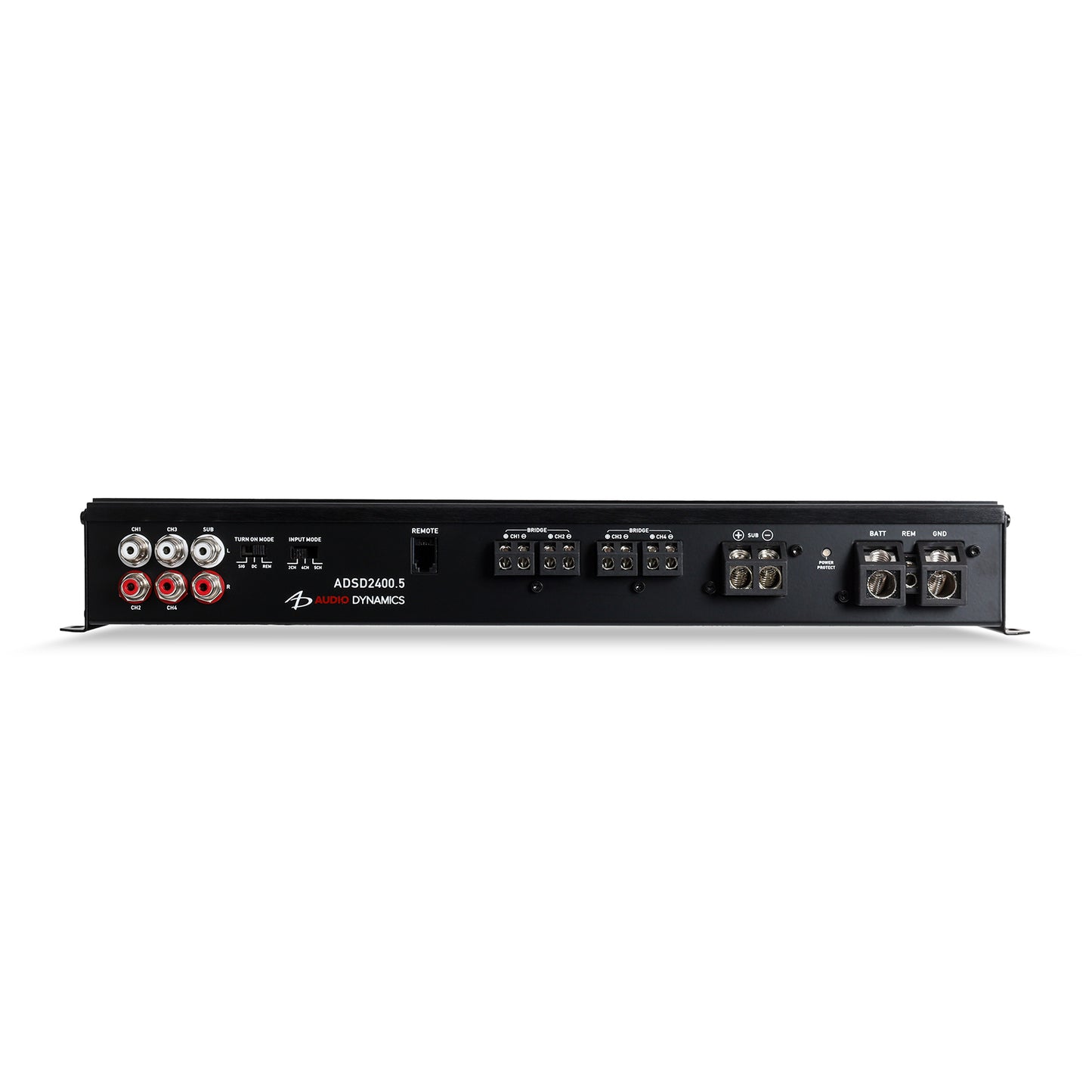

Bolt-Thru RCA Connectors

Low/High Level RCA Inputs

Auto Turn ON (DC/Signal)

Wired Subwoofer Volume Controller Included

Audio Precision Quality Control Verification

Engineered in U.S.A. and China
