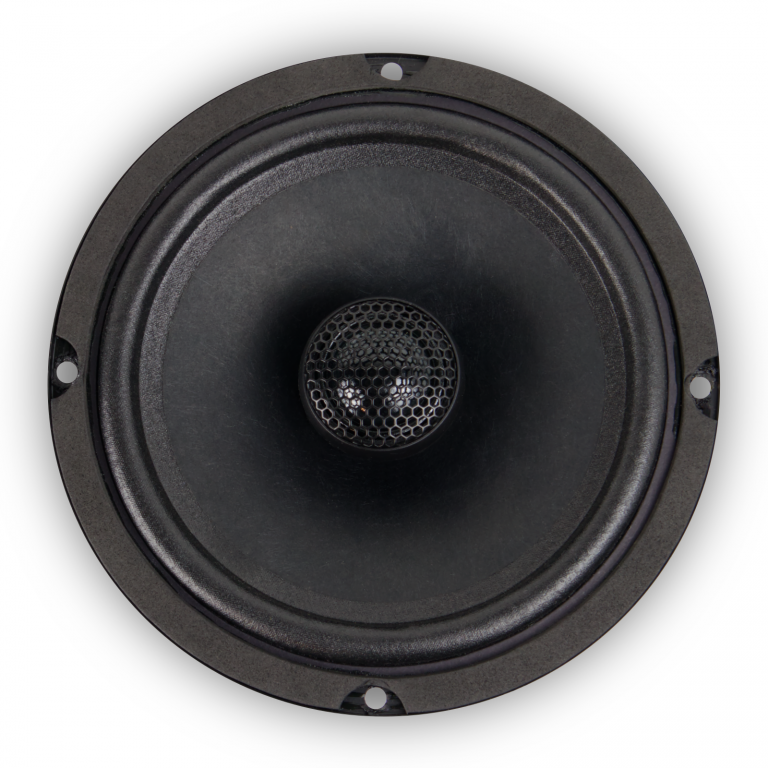

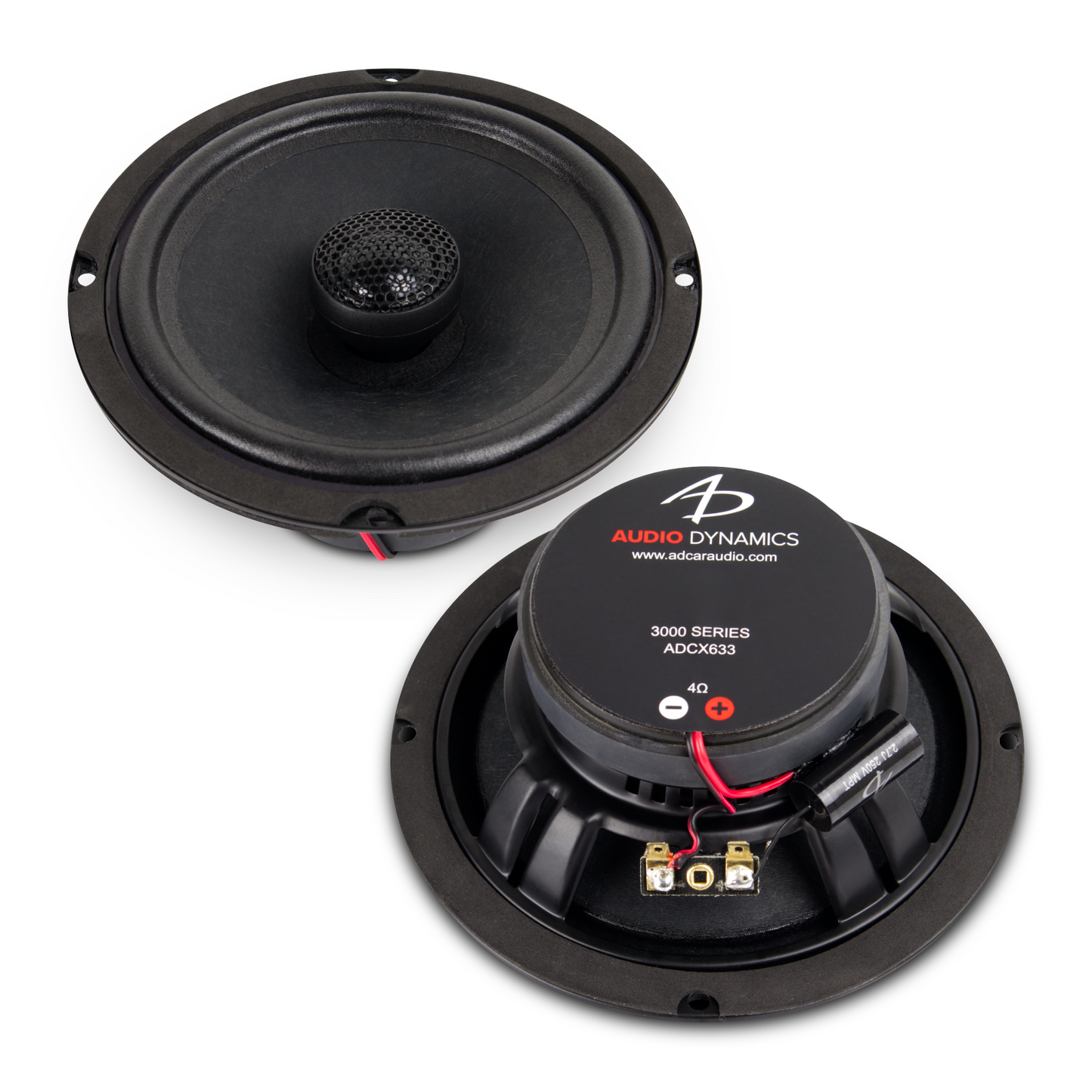

Audio Dynamics 3000 Series 6.5″ Speakers – CX633 (pair)

• Perfectly blended wool pulp cone mid/woofer for realistic tonal accuracy
• 6 ½” (166 mm) Steel frame mid/woofer
• 60 count yarn cloth surround
• 1 3/16″ (30 mm) voice coil mid/woofer
• Shorting ring for extended response
• Gold plated terminals
• 1″ (25.4 mm) High-end transparent silk dome tweeter
• Polypropylene capacitor on tweeter
• 125 Watts RMS power handling*

Fs	66.920 Hz
Qms	3.824
Vas	10.140 l
Cms	0.412 mm/N
Mms	13.540 g
Rms	1.506 kg/s
Dia	129.400 mm
Sd	131.509 cm²

Qes	0.788
Re	3.281 Ω
Le	0.044 mH
Z	3.937 Ω
Bl	4.866 Tm
Bl²/Re	7.219 N²/W

Qts	0.653
no	0.371 %
SPL	87.847 dB

Frame Outer Diameter	6 9/16" (166mm)
Grille Outer Diameter	7 3/16" (182mm)
Motor Outer Diameter	3 1/2"  (90mm)
Tweeter Protrusion	  1/4"  (6mm)
Grille Protrusion	  7/8"  (23mm)
Mounting Hole Diameter	5 5/8"  (142mm)
Mounting Depth		2 5/16" (59mm)
