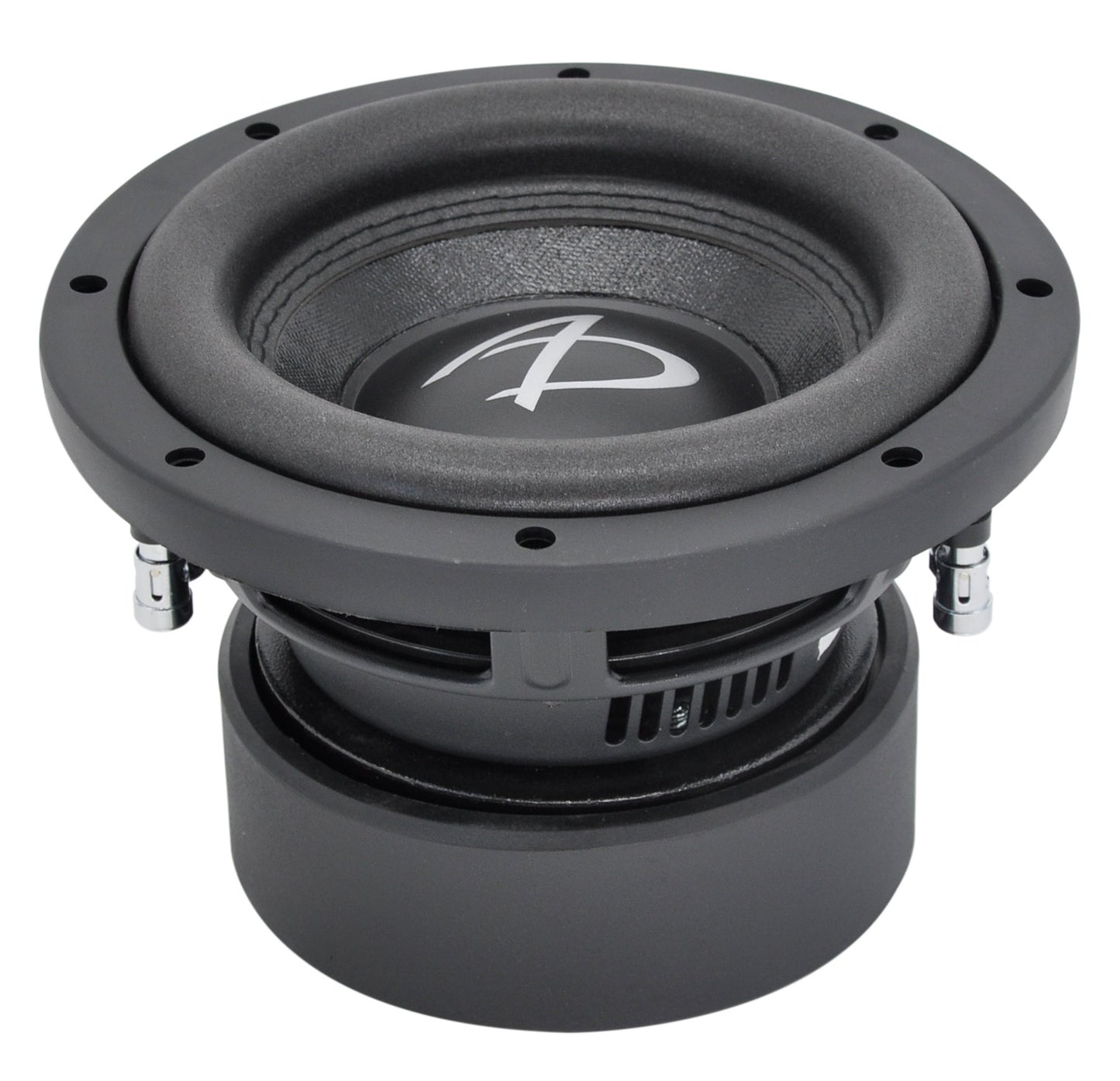

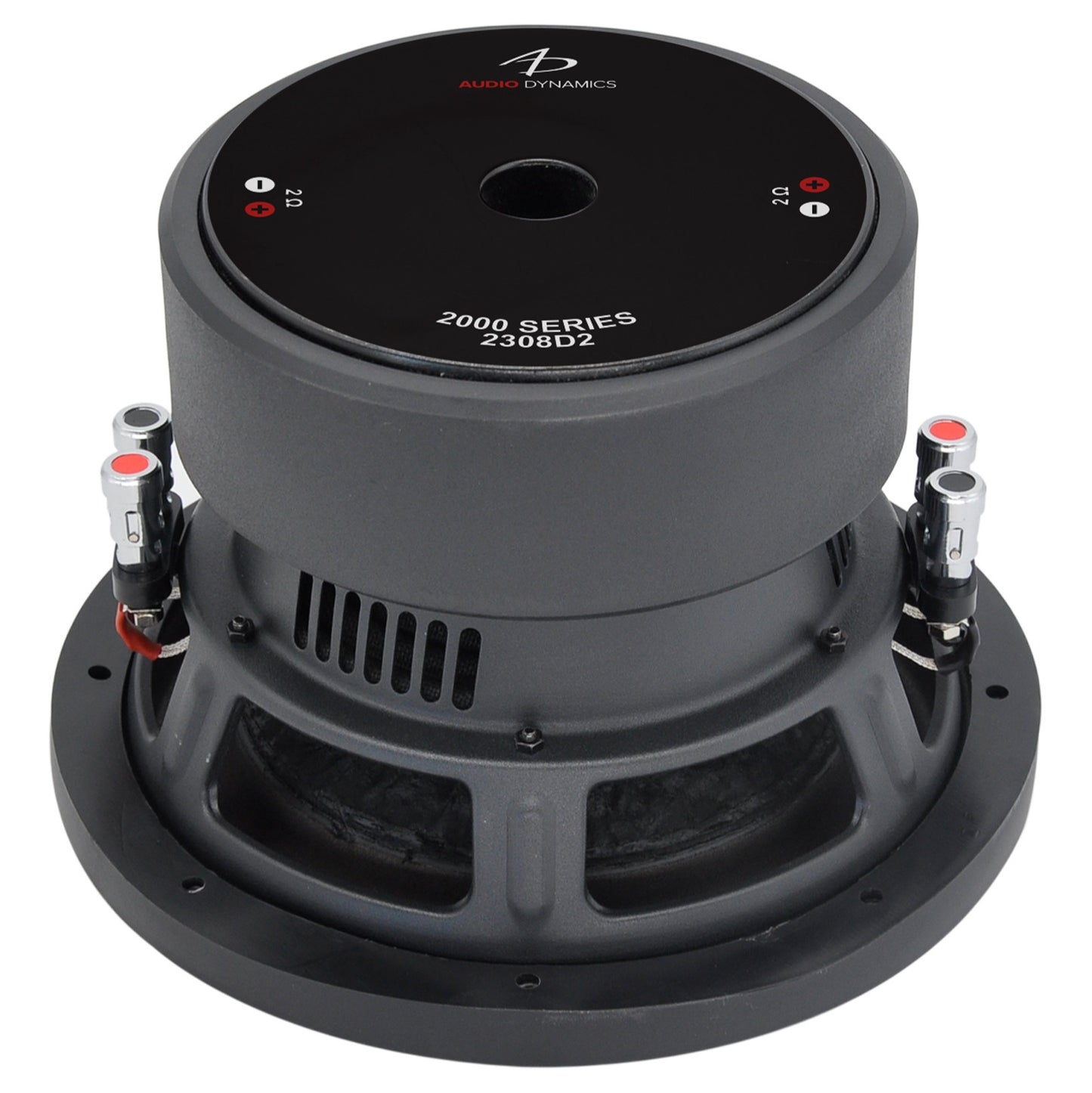

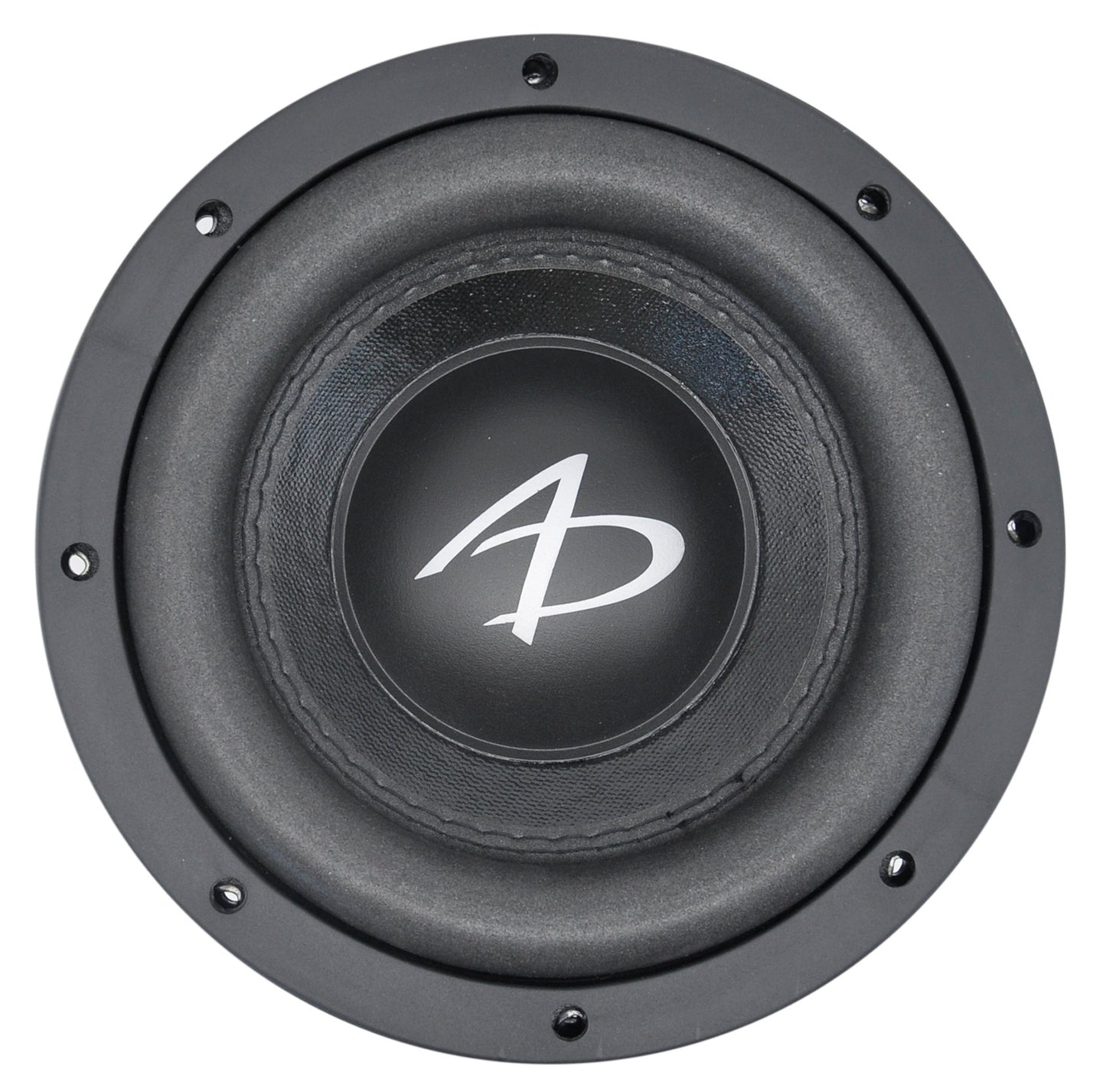

Audio Dynamics 8" 2000 series dual 2 ohm

Description

The 2300 series 8″ employs a finely-tuned balance of damping and motor force to achieve high efficiency, offering exceptional versatility and performance in a variety of real-world functions:

Paired with a traditional (4th order) bass-reflex enclosure, the subwoofer’s output can be focused along a narrow bandwidth for use in sheer loudness / SPL applications. In a 6th order bass-reflex, the output can be spread along a wider frequency range, shifting emphasis onto sound quality with articulate delivery and highly controlled excursion.

150W – 400W optimal power range

2″ voice coil diameter

Designed for use in small vented enclosures.

Engineered in the USA.

Fs 47.10 Hz

Qms 7.49

Vas 5.47 l

Cms 0.090 mm/N

Mms 118.50 g

Rms 4.72 kg/s

Dia 159.99 mm

Sd 201.08 cm²

Qes 0.54

Re 4.11 Ω

Le 1.63 mH

Z 4.00 Ω

Bl 16.20 Tm

Bl²/Re 63.80 N²/W

Qts 0.51

no 0.10 %

SPL 82.15 dB

EBP 85.69

Nominal Diameter 8 in

Overall Diameter 8.39 in / 213 mm

Mounting Hole Diameter 7.13 in / 181 mm

Bolt Hole Circle Diameter

Motor Outer Diameter 5.70 in / 145 mm

Mounting Depth 4.92 in / 125 mm

Driver Displacement 0.048 cu ft / 1.37 l

Minimum Sealed Volume N/A

Minimum Vented Volume 0.42 cu ft / 12 l net*
