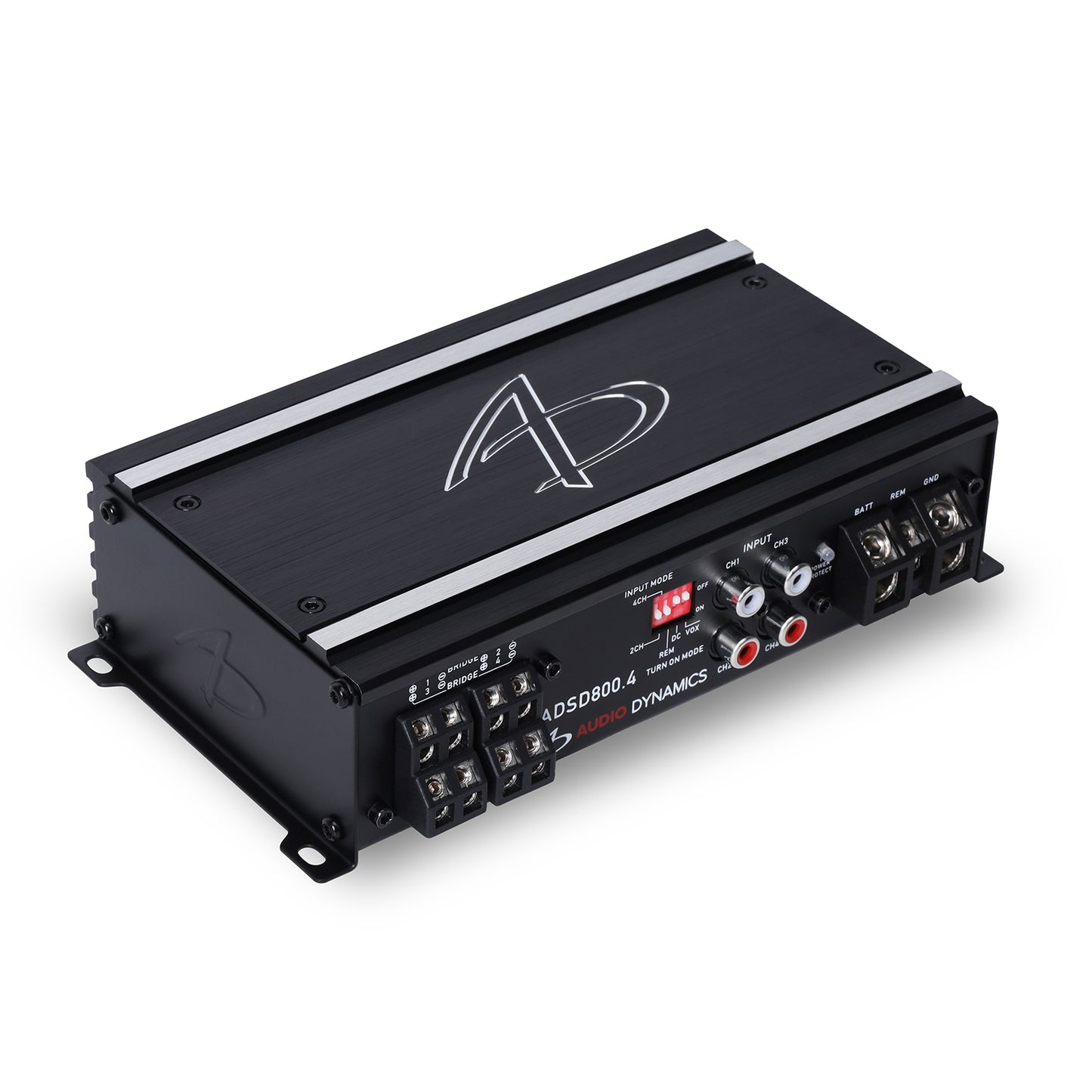

Audio Dynamics 800.4
Regular price
$460.00 USD
Regular price
Sale price
$460.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Description
800W 4-Channel Amplifier
Full Range Class D
Ultra Small Size for Easy Installation

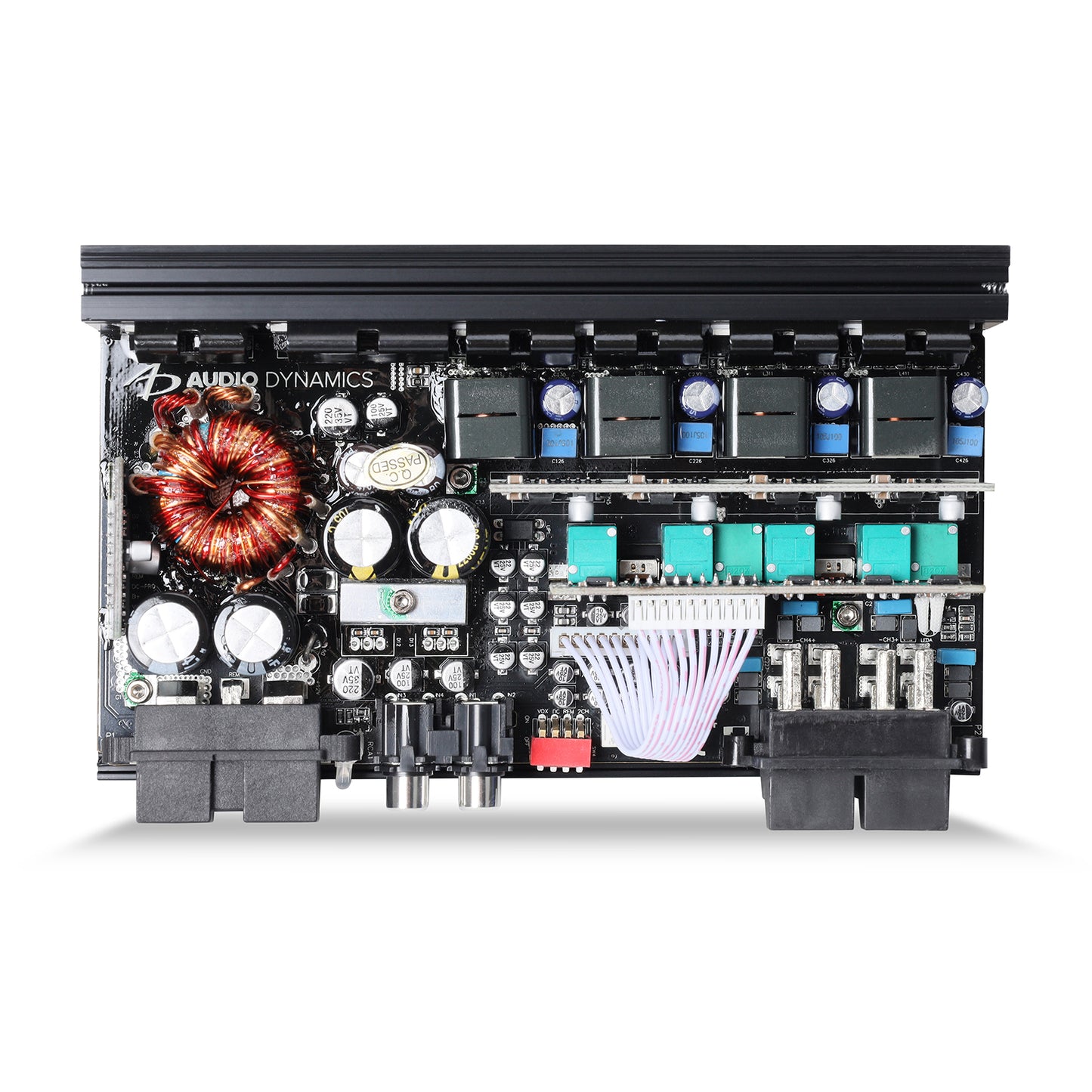

Infineon Chipset Drive Technology

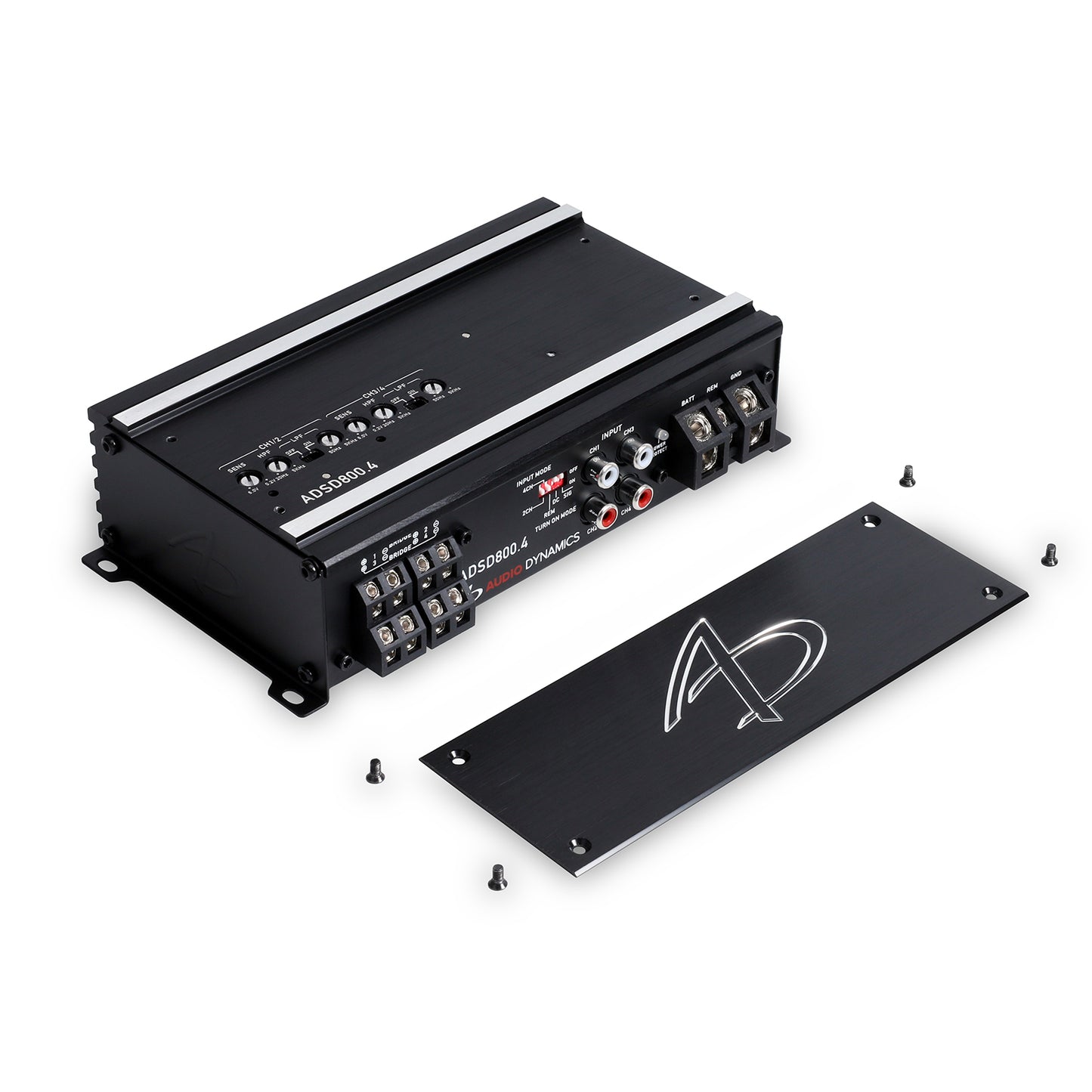

Controls Under Reversible Top Cover
Click-in-Place Crossover Controls
Clip Indicator by Level Controls
Band Pass Capable
Auto Turn On (DC/Signal)
2ch/4ch Input Selector
High/Low Level RCA Inputs
Audio Precision Quality Control Verification
Engineered in U.S.A. and China
SPECS
| Continuous Power | 125W x 4 @ 4 ohms |
| 14.4V Supply Voltage | 200W x 4 @ 2 ohms |
| Bridged | 400W x 2 @ 4 ohms |
| Frequency Response | 10Hz – 27KHz |
| Input Sensitivity | 200mV – 6V (low level) |
| 500mV – 10V (high level into RCA connectors) | |
| Recommended Fuse Ratings | 40A @ 4 ohms / 80A @ 2 ohms |
| Filter Modes | High Pass – Low Pass – Band Pass |
| High Pass Filter | Ch 1+2: 20Hz – 5KHz |
| At 12dB/Oct Slope | Ch 3+4: 20Hz – 5KHz |
| Linkwitz-Riley | |
| Low Pass Filter | Ch 1+2: 50Hz – 5KHz |
| At 12dB/Oct Slope | Ch 3+4: 50Hz – 5KHz |
| Linkwitz-Riley | |
| Detented Filter Potentiometers | 41 Click-in-Place Frequencies |
| Height | 2 in / 50.3 mm |
| Width | 7.8 in / 198 mm (includes mounting feet) |
| Depth | 4.5 in / 114.3 mm (includes terminals) |
