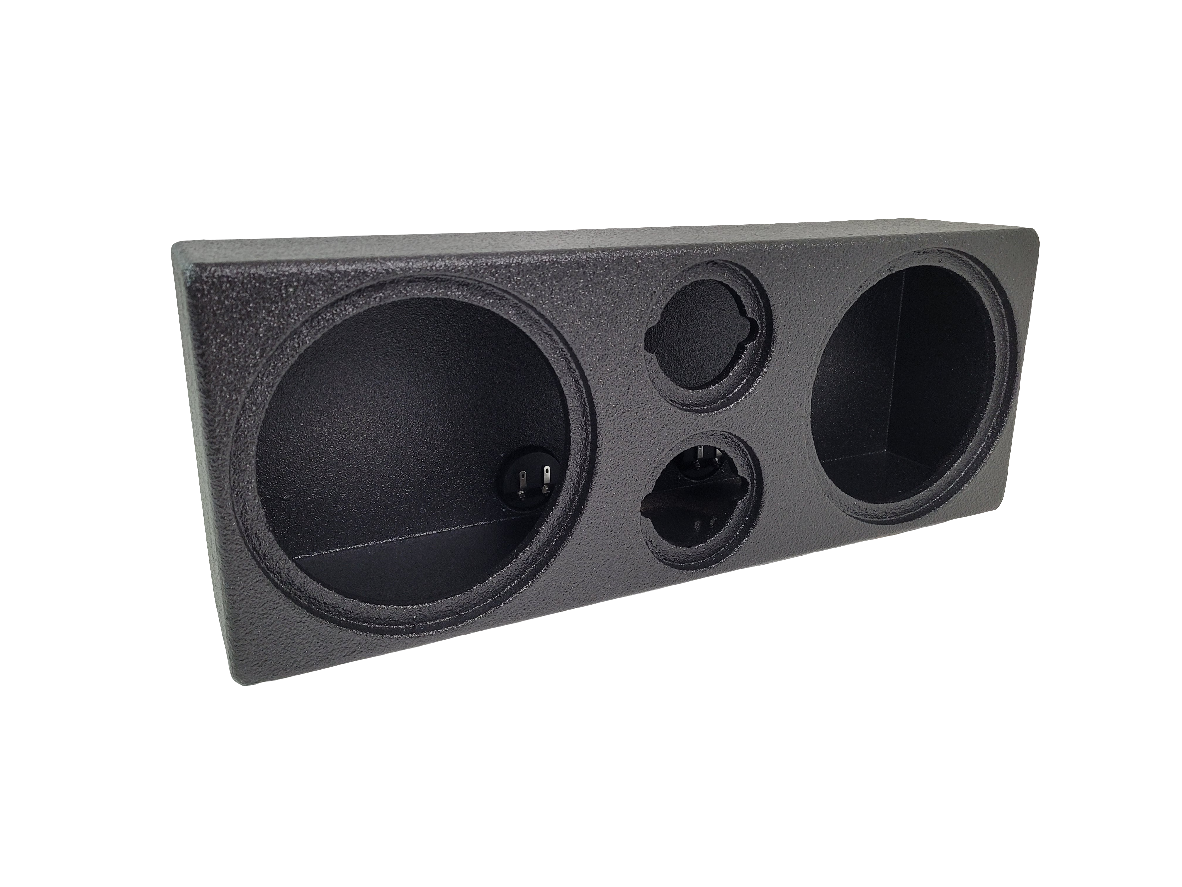

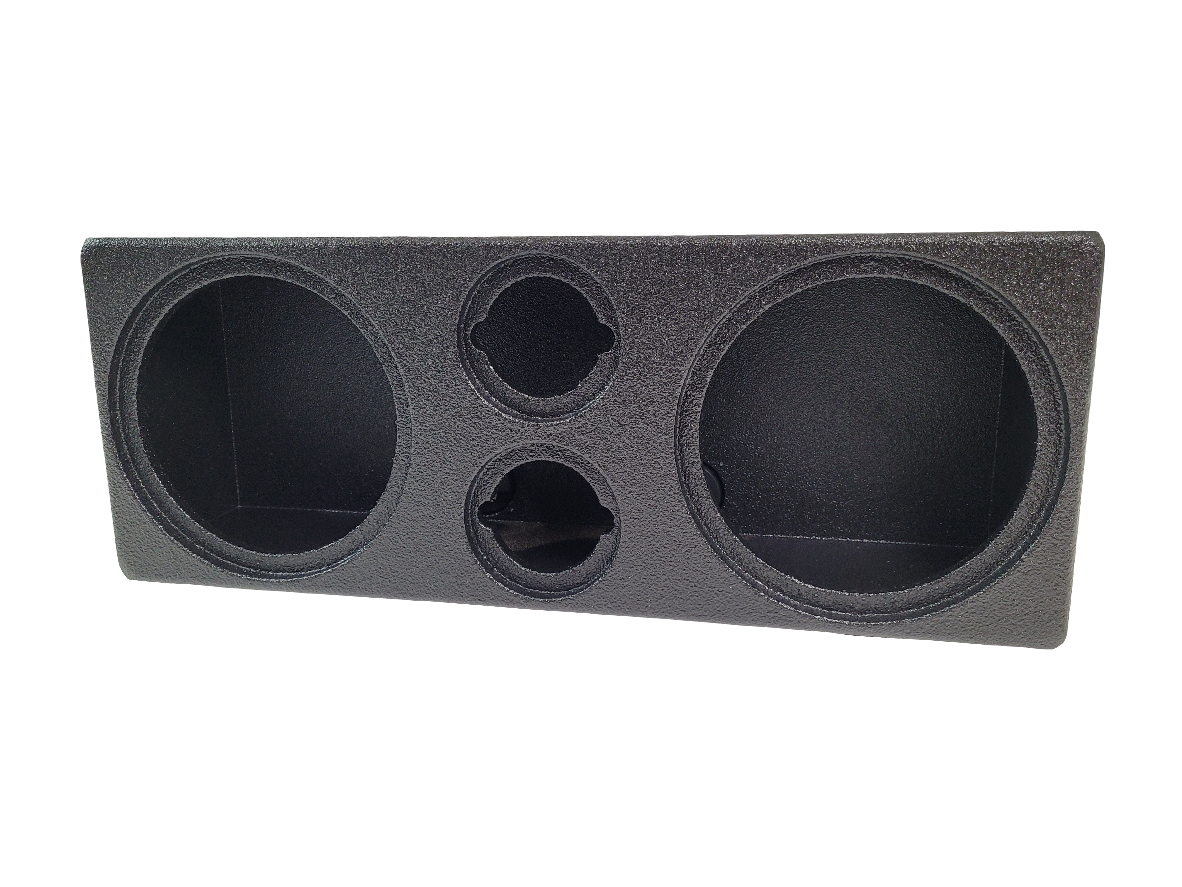

Dual 8" Empty Speaker Rack

Dual 8" Empty Speaker Rack

Bedliner coating

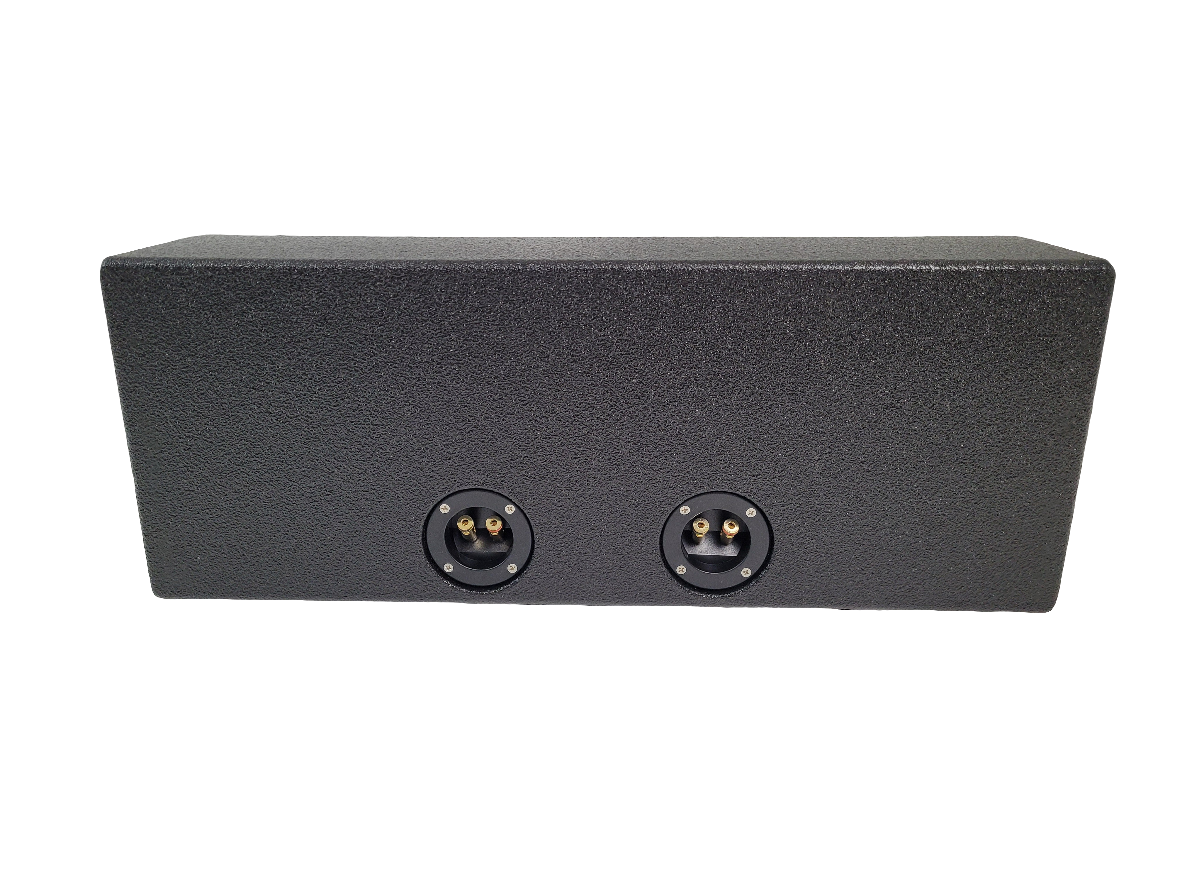

(2) Push spring terminals

Rack Dimensions

24 - 1/4" Wide

5 - 5/8" Deep

9 - 3/8" Tall

Holds (2) 8" speakers & (2) tweeters

Speaker mounting diameter  7 - 1/4"

Mounting depth 4"

Overall Speaker diameter 8 - 3/8"

Tweeter mounting diameter  2 - 3/4"

Tweeter mounting depth 4"

Over all tweeter diameter that can fit  3 - 3/4"

Tweeters recommended Skar Audio super tweeters, Link below

https://mauisounds.com/products/skar-audio-1-8-super-tweeters
