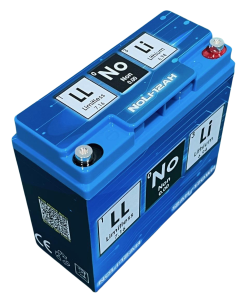

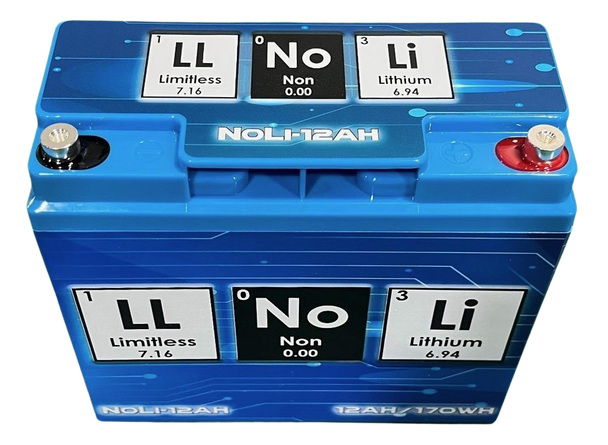

Limitless Lithium NoLi Sodium 12Ah Battery

Model number NoLi-12AH

Specifications

Resting Voltage (Charge Voltage Dependant) 12-15.5V

Float/Maintanance Charging Voltage 14.2V

Max Charging Voltage 16V

Minimum Charging Voltage 10V

Capacity (Ah) 12AH

Capacity (Pb Eq) 48Pb Eq

Cell Chemistry SIB

Cell Life Cycles 4,000 80% DOD

Craking Amps (CA) 1170

Cold Craking Amps (CCA) 880

Nominal Operating Temperature Range 14F-140F

Terminal Bolt Size M5

Terminal Orientation Right Positive

Balance Board Installed

Performace 14.6V (Standard Voltage)
RMS Wattage (Installed with 100A stock alternator) 2,000-2,500W 14.6V Input Voltage

Max Burst Wattage (Installed with 100A Alternator) 3,500W 14.6V Input Voltage

RMS Amperage Output (Stand Alone for 30 seconds) 75A Starting at 14.6V
Max Burst Amperage Output (Stand alone for 10 seconds) 150A Starting at 14.6V

Recommended Charging/Input 200A

Maximum Charging/Input Current 300A Charging above 300A Shortens the cycle life

Performace 16V (High Voltage)

RMS Wattage (Installed with 100A stock alternator) 2,500-3,000W 16V Input Voltage

Max Burst Wattage (Installed with 100A Alternator) 4,000W 16V Input Voltage

RMS Amperage (Stand Alone for 30 seconds) 100A Starting at 16V

Max Burst Amperage (Stand alone for 10 seconds) 200A Starting at 16V

Recommended Charging/Input 200A

Maximum Charging/Input Current 300A Charging above 300A Shortens the cycle life

Measurements

Overall Length 7"

Overall Width 3"

Overall Height 6.5" Weight 4.10 LBS

BCI Battery Group Model 20
