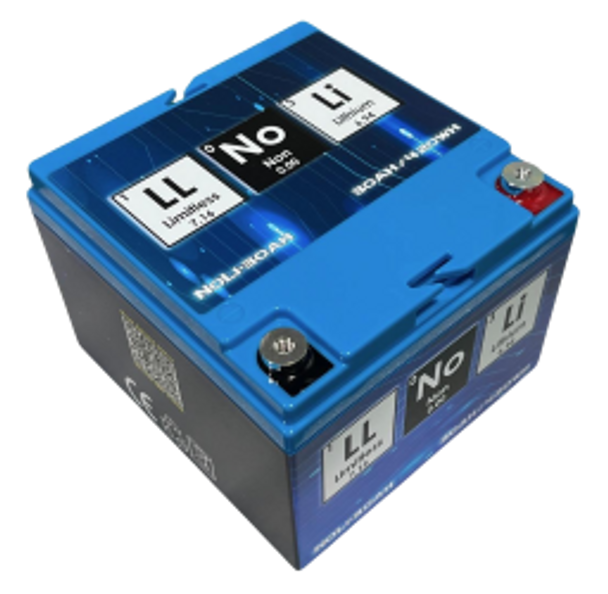

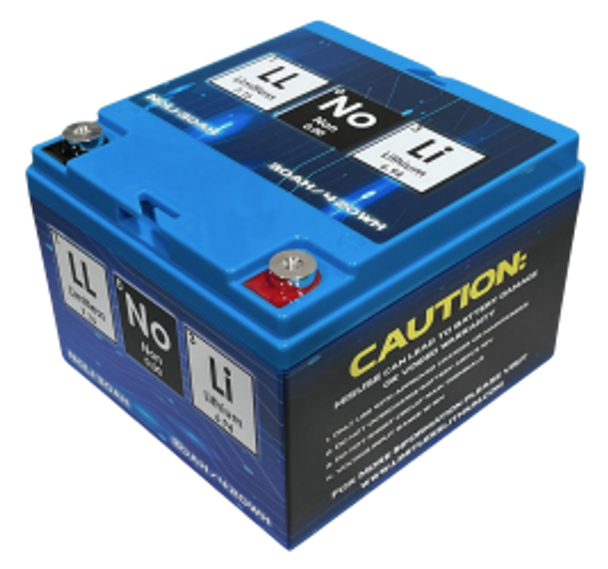

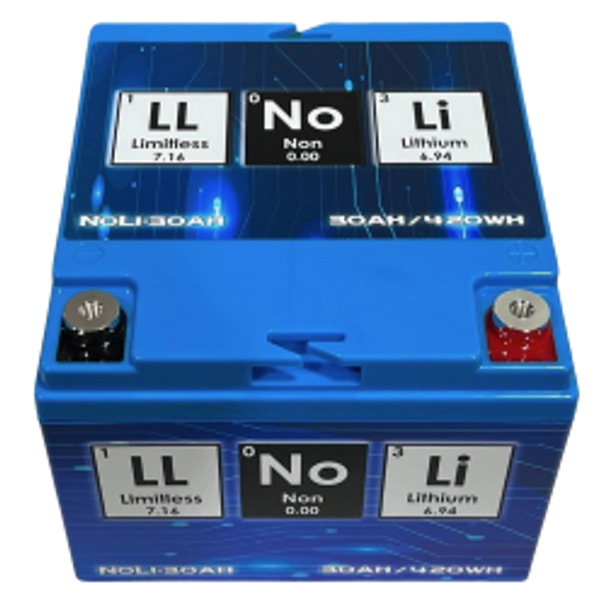

Limitless Lithium NoLi Sodium 30Ah Battery



Model Number NoLi-30AH

Specifications Ratings / Comments

Resting Voltage (Charge Voltage Dependent) 12-16V

Float/Maintenance Charging Voltage 14.2V

Max Charging Voltage 16V

Minimum Charging Voltage 10V

Capacity (Ah) 30AH

Capacity (Pb Eq) 110Pb Eq

Cell Chemistry SIB

Cell Life Cycles 4000



80% Depth of Discharge (DOD)



Cranking Amps (CA) 1500

Cold Cranking Amps (CCA) 1125

Nominal Operating Temperature Range 14F-140F

Terminal Bolt Size M6-1.0

Terminal Orientation Right Positive

Balance Board Installed Yes

Battery Management System Installed (BMS) No

Performance 14.6V (Standard Voltage) Ratings / Comments

RMS Wattage (Installed with 100A stock alternator) 4,000-5,500W

(14.6V Input Voltage)

Max Burst Wattage (Installed with 100A Alternator) 6,000W

(14.6V Input Voltage)

RMS Amperage Output (Stand Alone for 30 seconds) 300A

(Starting at 14.6V)

Max Burst Amperage Output (Stand alone for 10 seconds) 360A

(Starting at 14.6V)

Recommended Charging/Input Current 200A

Maximum Charging/Input Current 300A



(Charging above 300A Shortens the Cycle Life)



Performance 16V (High Voltage) Ratings / Comments

RMS Wattage (Installed with 100A stock alternator) 6,000W-8,000W

(16V Input Voltage)

Max Burst Wattage (Installed with 100A Alternator) 10,000W

(16V Input Voltage)

RMS Amperage (Stand Alone for 30 seconds) 450A

(Starting at 16V)

Max Burst Amperage (Stand alone for 10 seconds) 600A

(Starting at 16V)

Recommended Charging/Input Current 200A

Maximum Charging/Input Current 300A



(Charging above 300A Shortens the Cycle Life)



Measurements Measurements

Overall Length 6.88"

Overall Width 6.5"

Overall Height 5"

Overall Height (Without Terminals) 5"

Weight 9.9 Lbs

BCI Battery Group Model Group 30
