Sound Magus DK 1200.1

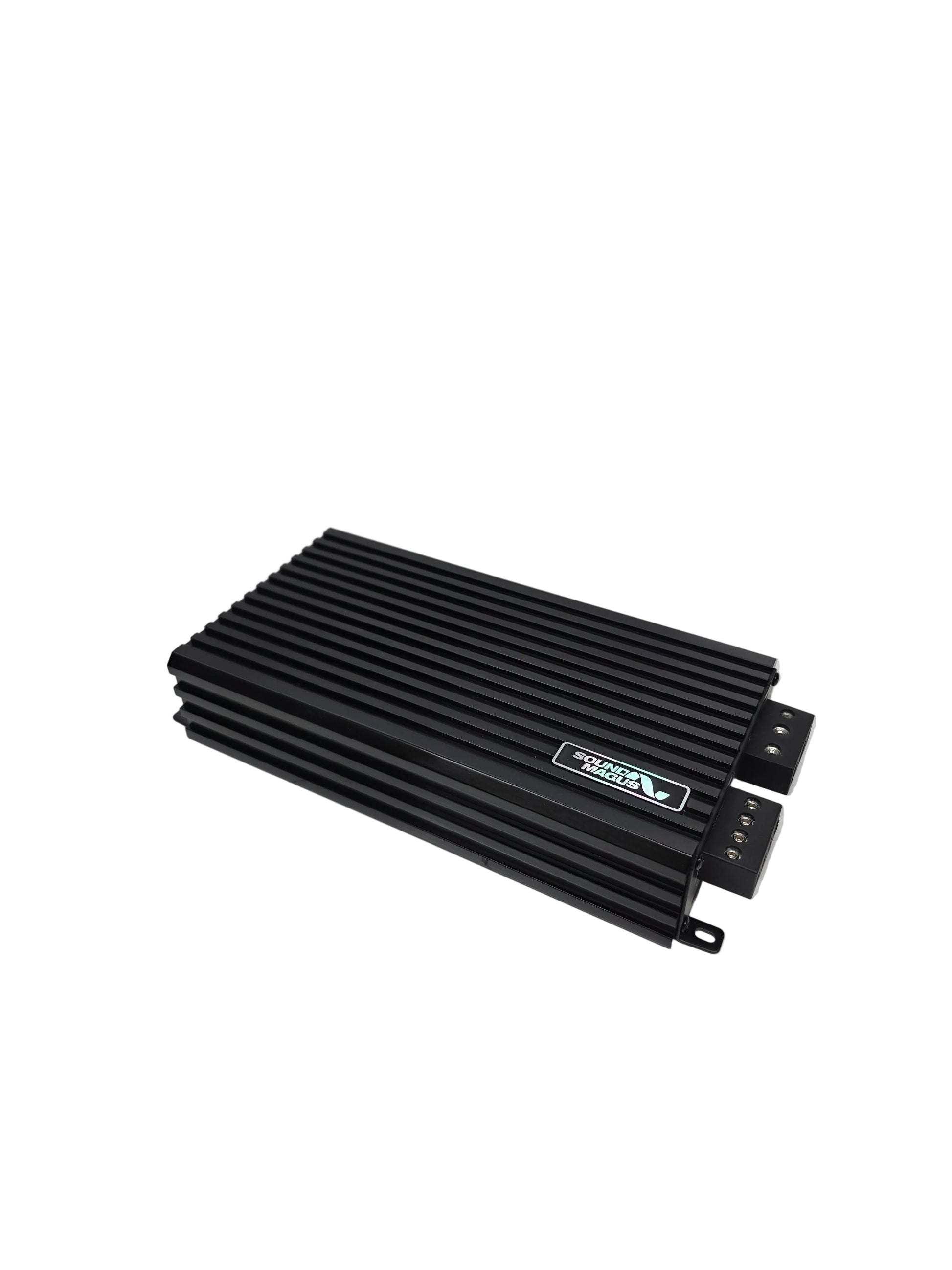

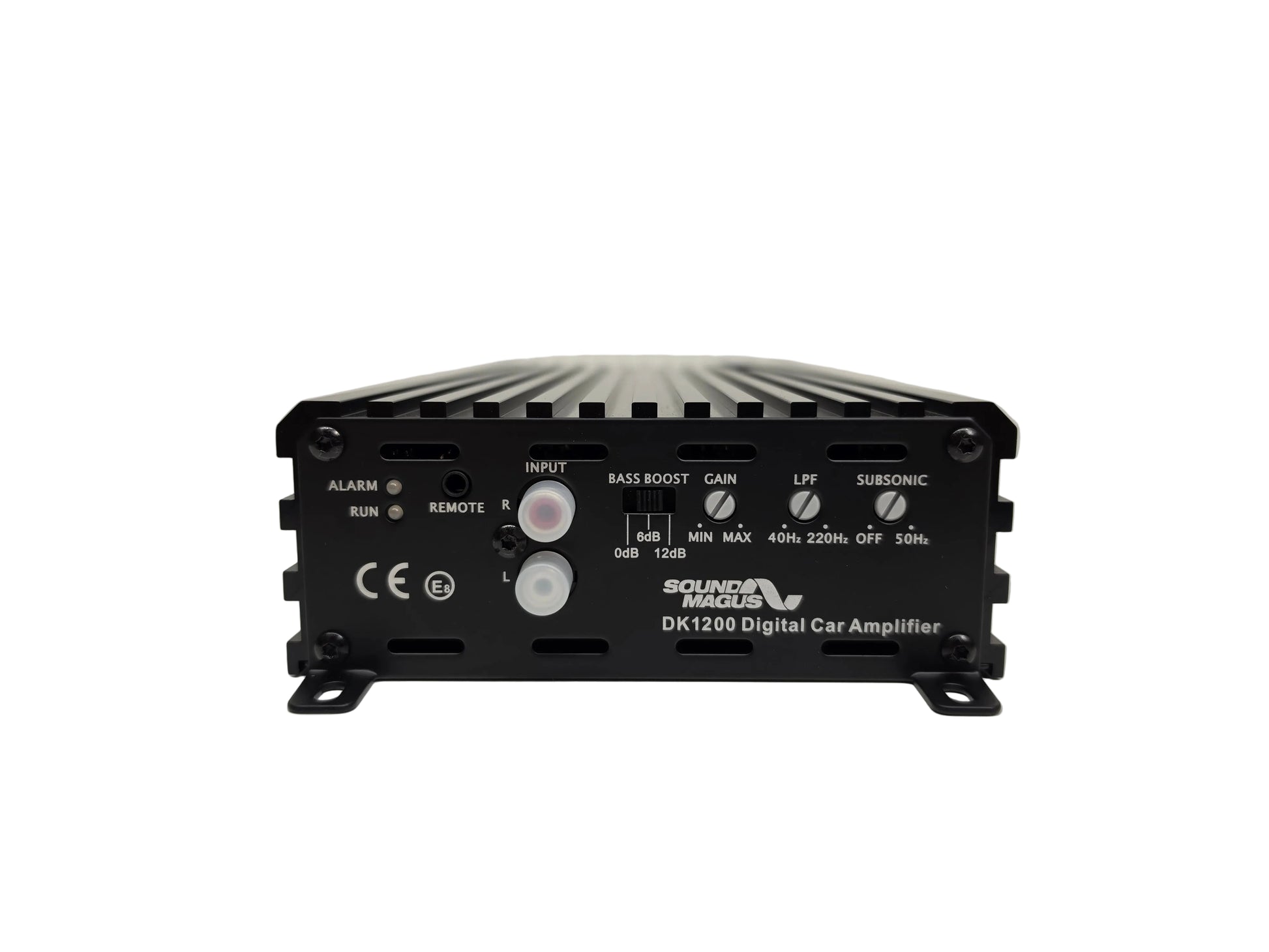

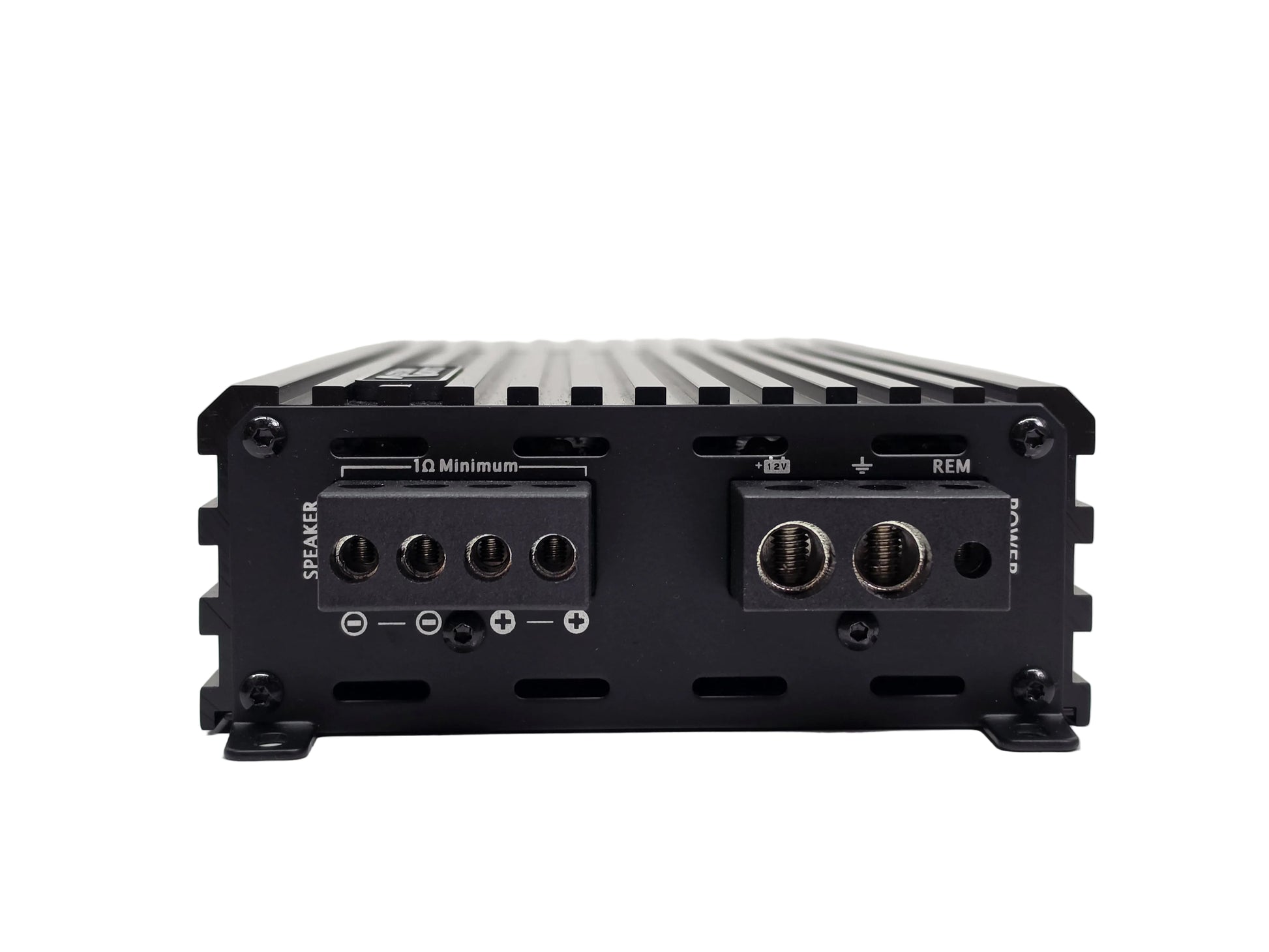

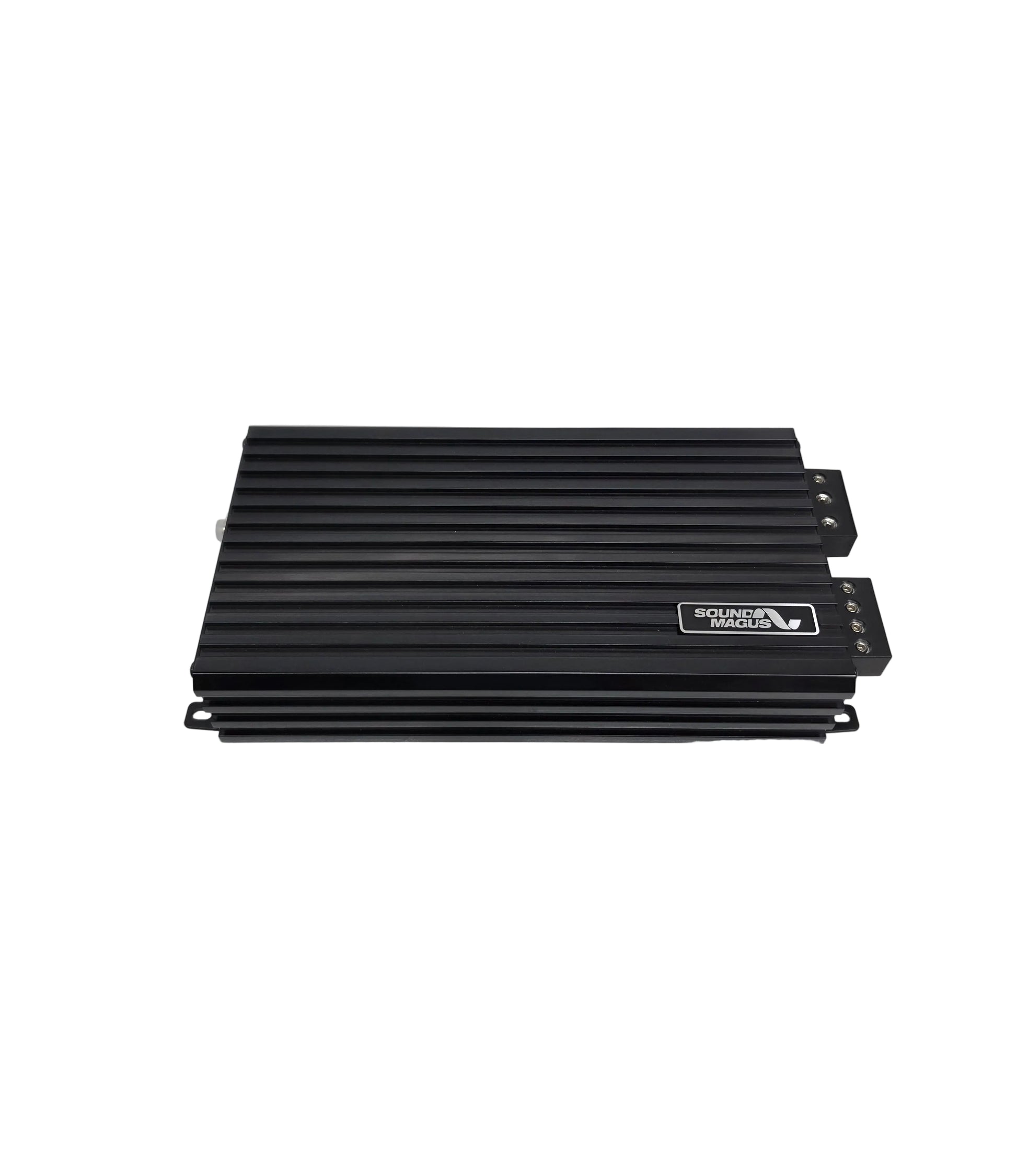

Sound Magus DK 1200.1 Mono Block Amplifier

POWER RATINGS

1000 x 1 Watts RMS @ 1 ohm

600 x 1 Watts RMS @ 2 ohm

400 x 1 Watts RMS @ 4 ohm

RECOMMENDED FUSE RATING

100 AMP

RECOMMENDED WIRE SIZE

4 GUAGE COPPER WIRE

DIMENSIONS

Length - 10.27"

Width - 5.51"

Height - 2.12"

OPERATING VOLTAGE RANGE

10v - 15v

FEATURES

Input level - 0.2 - 5V

Frequency Response - 10Hz - 220Hz

LPF - 40Hz - 220Hz

Subsonic Filter (HPF) - 10Hz - 50Hz

THD at 4ohm load at 30% Rated Power - <0.3%

S/N Ratio - >80dB

BassBoost - 0-6dB-12dB switchable

Best Efficiency @ 4ohm - >80%

Minimum Load - 1ohm

Optional Remote - YES

Low Voltage Protection - Yes, protect < 8V

ShortCircut Test @ Max Power - Pass

Overheat Protect temperature - SMD parts / double side FR-4 pcb
