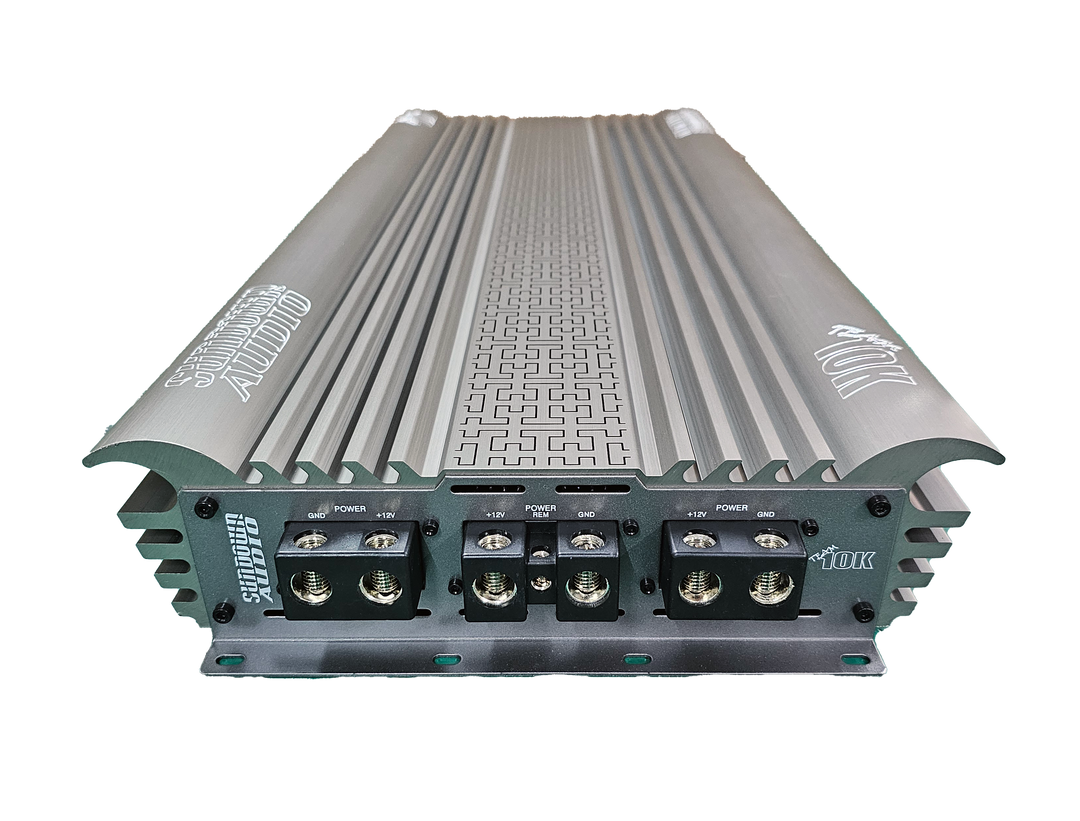

Sundown Audio Team 10k Bass Amplifier

Sundown Audio Team 10k Bass Amplifier



AMP DYNO TEST



CERTIFIED DYNO RUN

12412 WATTS RMS

@1 OHM (14.04 VDC)



UNCERTIFIED DYNO RUN TO CLIPPING

13529 WATTS RMS

@ 1 OHM  (13.8 VDC)



DYNAMIC RMS POWER

18830 WATTS RMS

@ 1OHM (15.06 VDC)



DYNAMIC RMS POWER

13306 WATTS RMS

@ 1 OHM (14.32 VDC)



Listed Technical Specifications (Under Rated)



Power Output (RMS @ 14.4V):

 1 Ohm Mono: 10,000W

2 Ohm Mono: 7,000W

4 Ohm Mono: 4,000W

2 Ohm Strapped (Linked): 20,000W



General Specifications



Class D Digital Monoblock Design

Dual MOSFET PWM Power Supply

Efficiency: > 97% (at 4 Ohms)

Input Sensitivity: 6V – 0.2V

Frequency Response: 15Hz – 264Hz

Signal-to-Noise Ratio: 91 dB

Damping Factor: > 400

THD: < 0.1%

Working Voltage: 9V – 16.5V

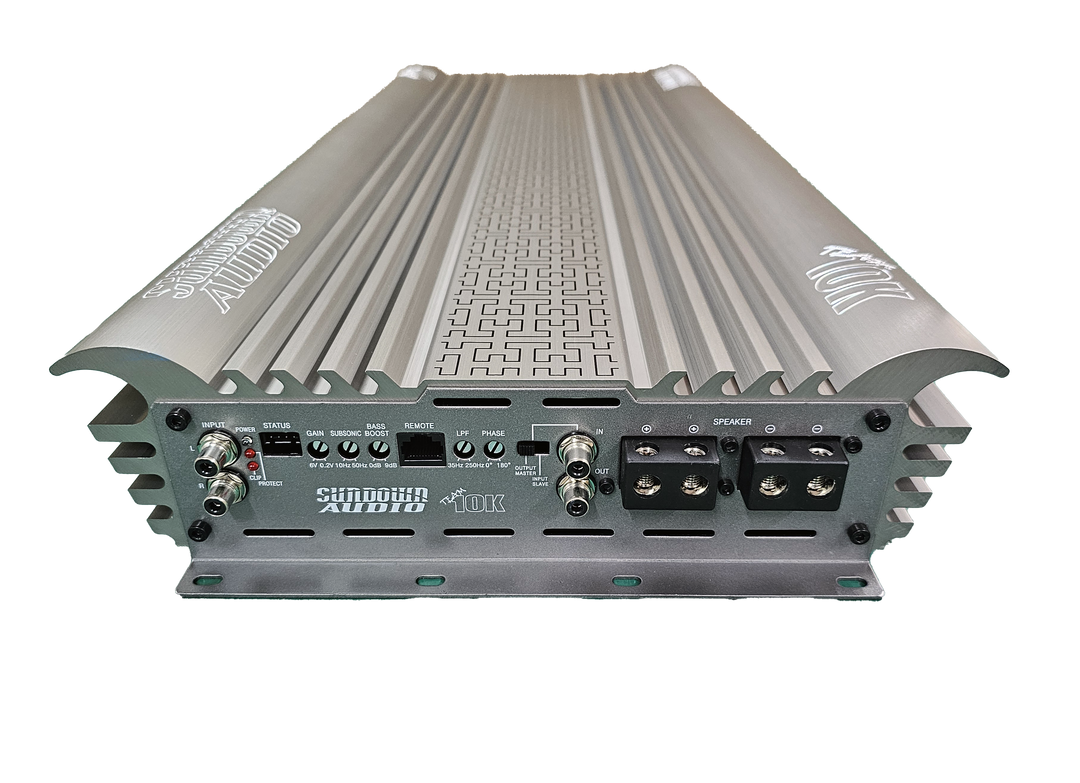

Controls & Filters:



Low Pass Filter: 35Hz – 250Hz (24 dB/Oct)

Subsonic Filter: 10Hz – 50Hz (24 dB/Oct)

Bass Boost: 0 – 9 dB @ 45Hz

Phase Shift: 0 – 180°

Connectivity & Extras:



RCA Inputs/Outputs (for Master/Slave Linking)

Wired Remote Control with:

Voltage Display

Temperature Display

Clipping Indicator

Protection Features:



Thermal

Voltage

Speaker Short

DC Offset

Fuse Rating:



1000A (External – not built-in)

Dimensions:



27.55" (L) x 11.82" (W) x 3.06" (H)
