SKY HIGH CAR AUDIO 10500.1 Bass Amplifier



SKY HIGH CAR AUDIO SHCA 10500.1

The Loudest Statement We’ve Ever Made



-SMD AMP DYNO POWER RATINGS-



DYNAMIC BURST MODE

0.5 OHM / @13.36V / 40HZ

21726 WATTS RMS



1 OHM / @14.10V / 40HZ

13976 WATTS RMS



2 OHM / @14.09V / 40HZ

8850 WATTS RMS



CERTIFIED MODE

0.5 OHM / @12.04V / 1%THD / 40HZ

10310 WATTS RMS



1 OHM / @13.88V / 1%THD / 40HZ

10310 WATTS RMS



2 OHM / @13.88V / 1%THD / 40HZ

6983 WATTS RMS



-DIMENSIONS-

Lenght -  31.49"

Width - 9.92"

Height - 3.13"



-FEATURES-



Korean Built | Class D | 0.5Ω Stable | Individually QC Tested | Ultra Fast Switching | Balanced Input Circuit | Onboard Synchronizer | Strappable | 3 Levels of Modular Cooling | Premium Customization in Color, Mounting & Appearance | Acrylic Back | Expansion-Ready

The SHCA10500.1 is Sky High’s top-tier amplifier—purpose-built for serious demo rigs, competition walls, or 15K+ watt systems where unmatched power, thermal stability, and aesthetic control are required.

True 0.5 Ohm Stability

Warrantied and tested to perform under heavy load in real-world conditions.

17.0vdc Max Operating Voltage - rated at 13.2vdc @ 1 ohm

1-Year Manufacturer Warranty

Covers manufacturer defects including 0.5Ω operation from date of purchase.

Korean Engineered & Assembled

Designed by engineers from scratch, using world class parts and optimized with Sky High modular features.

Still matches accessory kits, brackets, and overlays.

Efficiency & Airflow Built In

High-efficiency circuit layout reduces internal heat and stress

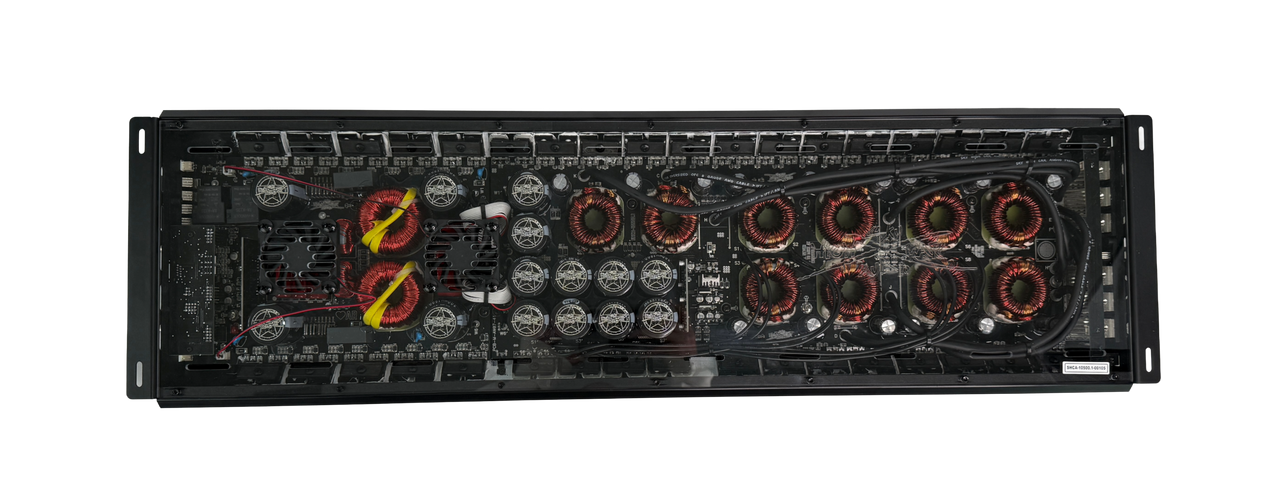

Standard acrylic backplate with internally mounted cooling fan improves reliability and extends performance during high-demand use

Designed for long play sessions, demo events, and high-output daily systems without heat-based drop-off

Customization That Stands Alone

Flippable Branding System

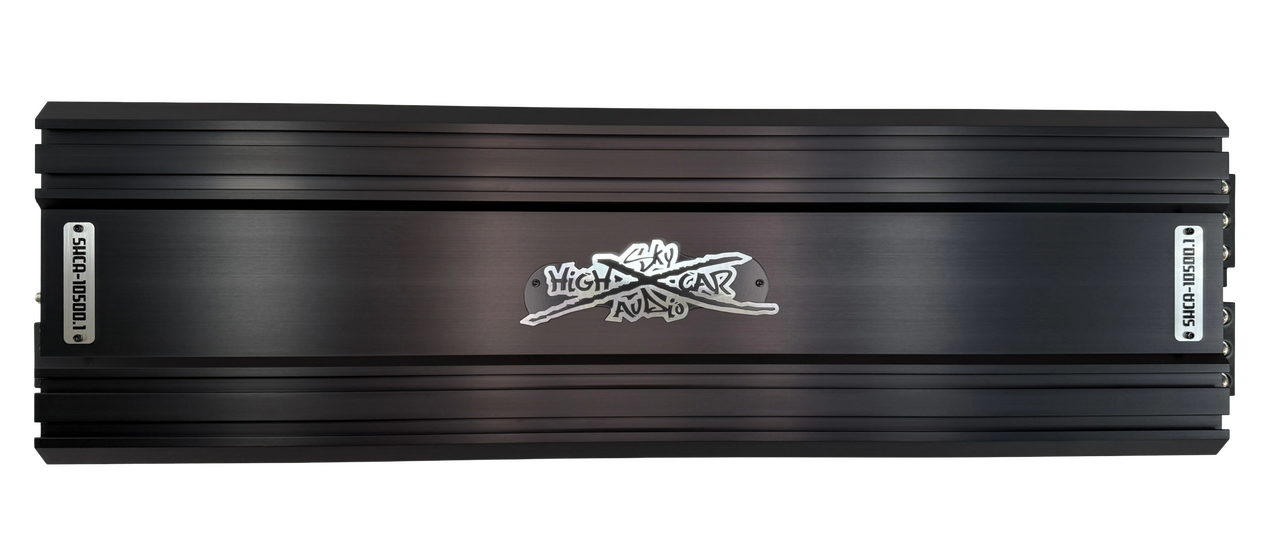

Diamond-cut aluminum Sky High logo and aluminum model number plates are fully reversible for clean orientation in any mounting position

Power Input Expansion Kits (Sold Separately)

Add more 12V power delivery points for high-demand builds

Available in:

Cast aluminum

CNC’d aircraft-grade aluminum

Copper

Ring Terminal Adapters (Sold Separately)

Ideal for tight fitments and clean panel work

Bolt-on design ensures secure, high-conductivity connections

Cooling System Expandability

Push/pull fan kits mount to the extruded heatsink extensions and plug into (4) onboard 12V outputs

Optional thermal bridges link airflow between linked amps

CAT6 Remote System

Link up to 12 SHCA amps

Control gain, subsonic, LPF, and phase control all from a single unit.

Monitor temp or voltage of amps

Fully compatible with Sky High Smart Bass Knob

Mounting Options for High-End Builds

Vertical mounting (adjustable mounts and static mounts available)
